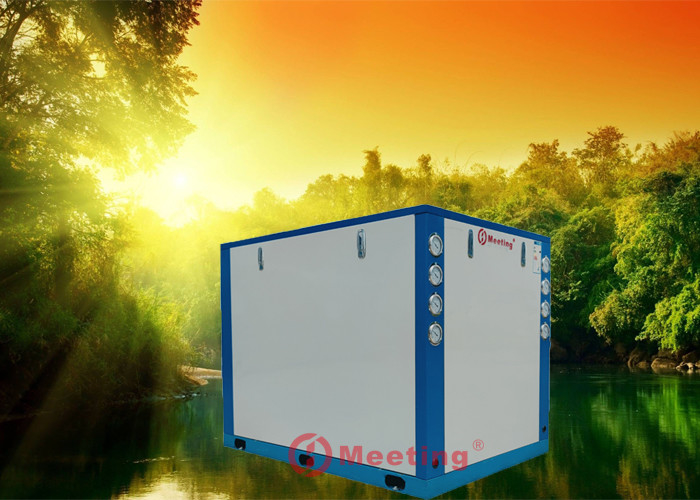

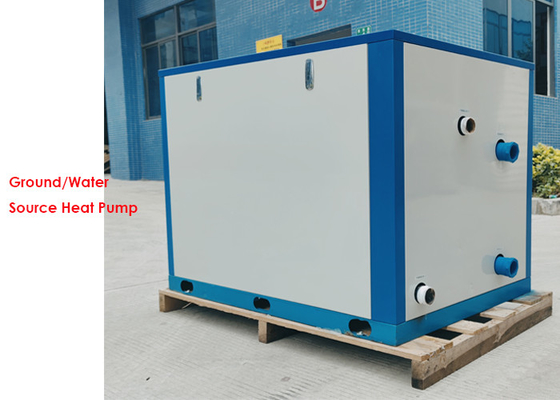

Meeting Large heating capacity MDS300D 90KW water to water heat pump for Large space

Meeting Large Heating Capacity MDS300D 90KW Water To Water Heat Pump For Large Space

Technology Specification




Quick Details:

Working environment: (-40 ° C) - 45 ° C



Heating capacity: 90KW	Rated water temperature: 55 ° C
Cooling capacity: 65KW	Maximum water temperature: 60 ° C
Input power: 21KW	Water source water flow: 30000L/H
Rated current: 45A	Hot water end water flow: 25000L/H
Water production: 2000L/H	Water source interface size: DN32mm
Rated voltage: 380V/50HZ	Hot water end interface size: DN32mm
Noise Db: ≤55Db	Evaporator: shell and tube heat exchanger
Condenser: casing heat exchanger	Throttle element: thermal expansion valve
Remarks, Initial/final water temperature of load side :15°C/55°C, Initial/outlet water temperature of source side, 15°C/ 10°C



Porduct feature:



1. Apply for imported compressor and famous accessories, reasonable match makes unit performance perfect.



2. Apply unique dimensional structure design, smaller installation size and no affect for indoor decoration appearance.



3. Unit can be used independently or in modular mode, each unit can be independent charged for easy check computation.



4. Apply for advanced microcomputer control for easy understanding for unit status.



5. High-efficient sound absorption &heating insulating material and double layered vibration damped on design, it features low-noise and bring enjoyment for security.



6. Each maintain, only to demount maintenance plate to repair, it features modular design, other units still can normally operate during maintenance.





Product Description



Applicable scope: The reservoir farms near the rivers and lakes, hotels, schools, hospitals, factory staff quarters and other places.





1. Water source heat pump system is a highly efficient and energy efficient refrigeration system that utilizes underground shallow geothermal resources (also known as ground energy, including groundwater, soil, or surface water). Stable geothermal resources throughout the year to meet the hot and cold demand, it is the best choice for alpine region to get hot water and heating.



2.The machine adopts international brand-name compressor, with patented technology efficient heat exchanger, refrigeration and heating more powerful, high efficiency, automatic micro computer intelligent control technology, set the multiple protection function.





A. Payment service



1. T/T





B. Technical service



1. We calculate the capacity and recommend the best models.



2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.



3. We supply the spare parts and technical support in and after the warranty time.



4. We supply the training course to your workers at our factory or site training if you need.





C. After-sales service



1. Technical support for your installation, operation and maintenance.



2. Standard warranty time: One years’warranty for heat pumps.



You can also pay for extended warranty or we can renegotiate the longer warranty period.



3. Spare parts and technical support at most economic prices after the warranty.





FAQ



Q1. Can I have a sample order for Heat pump or Water tank?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 3-10days, mass production time depend on the products'quantity.



Q3.Do you offer guarantee for the products?

A: Yes, 12 months since the heat pump depart from the port of loading (Refer to the Bill of Lading).





Certificsate we have got :

• ISO 9001, ISO 14000
• Our company has been inspected and certificate by EMC
• CE And EN14511, EN 14825-ERP for heat pump exported to europe
• Energy label for all heat pump models sold to oversea market
• Testing laboratory calibrated by CNAS





Use



Business Organizations, Supermarket, shopping malls, shops, department store, star-rated hotels, restaurants, school, office;



Public Places, subway, airports, stations, bookstores, exhibition halls, stadiums, museums, commercial buildings, hospital;



Entertainments Movie theaters, clubs, bars, cafes, Internet bars, beauty shops





Packaging Details  Carton and Wooden Package,  Delivery Time  15 working days after get the deposit
