Meeting Mds20d 7KW Water Source Heat Pump, Water To Water Heat Pump Household Heating System

Meeting Mds20d 7KW Water Source Heat Pump, Water To Water Heat Pump Household Heating System

    • Meeting Mds20d 7KW Water Source Heat Pump, Water To Water Heat Pump Household Heating System
    • Meeting Mds20d 7KW Water Source Heat Pump, Water To Water Heat Pump Household Heating System
    • Meeting Mds20d 7KW Water Source Heat Pump, Water To Water Heat Pump Household Heating System
  • Meeting Mds20d 7KW Water Source Heat Pump, Water To Water Heat Pump Household Heating System

    Product Details:

    Place of Origin: Guangzhou China
    Brand Name: Meeting
    Certification: CE ISO CCC UKAS,ROHS
    Model Number: MDS20D-SY

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 PCS
    Price: Negotiation
    Packaging Details: Plywooden case
    Delivery Time: 15 days
    Payment Terms: T/T, L/C WESTERN UNION
    Supply Ability: 800/MONTH
    Contact Now
    Detailed Product Description
    Materail: Spray Sheet Metal Heating Capacity: 7.5KW
    Copper Pipe Thick: 0.8-1mm Compressor: Copeland
    Working Temperature: -45-45 Degree Outlet Water Temperature: 60 Degree
    High Light:

    Heat Pump

    ,

    Water Source Heat Pump

    ,

    Water To Water Heat Pump Heating System



    Meeting Mds20d 7KW Water Source Heat Pump, Water To Water Heat Pump Household Heating System



    This ground source heat pump is a multi-functional ground source heat pump, which can offer housing heating, cooling and life hot water at the same time.



    Meeting Heat Pump | 19 YEARS PROFESSIONAL MANUFACTURER



    Commercial Ground Source Heat Pump Main Features:
    1. Heating Capacity: 7.5KW

    2. Compressor: Famous brand - Copeland Scroll for geothermal heat pump
    3. This geothermal heat pump have automatical defrosting function.
    4. Certification: CE, EMC, ISO9001, CCC
    5. The highest outlet water temperature: 60°C
    6. Best selling market: Central, West & East Europe, North Europe, Southeast Asia


    Ground Source Heat Pump Parameters:



    Rated input power:1.8KW Working air temp:-45℃—45℃
    Rated heating capacity :7.5KW Load side water flow:3000L/H
    Rated cooling capacity :5.4KW Heat source side water flow: 2000L/H
    Rated voitage:220V/50HZ Pipe size of heat source side:DN25mm
    Rated current :8A Noise Db:≤40Db
    Rated outlet water temperature :55℃ Evaporator:shell and tube heat exchanger
    Maximum outlet water temperature :60℃ Condenser:Double pipe heat exchanger
    Compressor :Panasonic Throttle units:thermal expansion

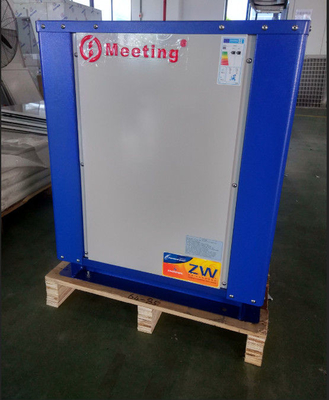

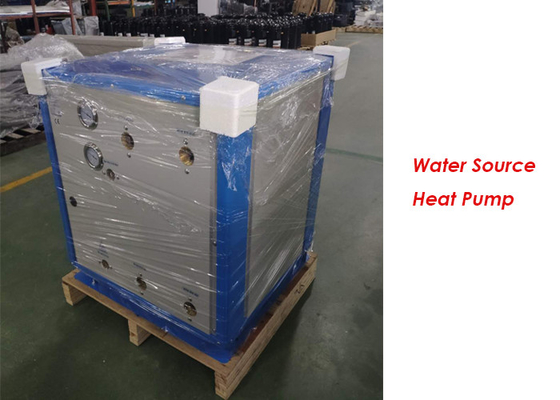

    Ground Source Heat Pump Product Photos:

    Meeting Mds20d 7KW Water Source Heat Pump, Water To Water Heat Pump Household Heating System 0



    Ground Source Heat Pump Working Diagram:

    Meeting Mds20d 7KW Water Source Heat Pump, Water To Water Heat Pump Household Heating System 1


    Ground Source Heat Pump Factory Photos:
    We are professional heat pump manufacturer since 2001, with 20000sp meters modern factory. It is invested and builed by our boss Dr. Hong Qinghui. Our factory is close to Baiyun International Airport, only 15mins. Welcome to contact me whenever you are at the airport.

    Meeting Mds20d 7KW Water Source Heat Pump, Water To Water Heat Pump Household Heating System 2


    Ground Source Heat Pump Package Include:
    1. 1pcs ground source heat pump
    2. 1pcs user manul
    3. 1pcs free ambient temperature sensor



    RFQ:

    Q1: Are you a manufacturer?

    A: Yes, we are a professional heat pump manufacturer since 2001, with experienced and outstanding R&D team, production, marketing and service supplying.
    Q2: What are your main products?

    A: Our products include air source heat pump, water source heat pump, geothermal heat pump, swimming pool heat pump, super low noice heat pump and EVI heat pump for cold climate etc.
    Q3: How about the lead time?

    A: It will take 1-15 working days for general order. And needs to negotiated for large and customized orders.
    Q4: Do you provide OEM/ODM customizid service?

    A: Yes, we warmly welcome your OEM/ODM orders. We can produce standard heat pumps under your brand and according to your special needs.
    Q5: Can i become your heat pump agent/distributor?

    A: Yes, we warmly welcome you become our heat pump agent/distributor who can distribute our heat pumps in your local country.
    Q6: How to place an order?

    A: You can contact us via email or online service at any time, we will offer you ralated product information and help you to place an order.
