|Place of Origin:||Guangzhou China|
|Certification:||CE ISO CCC UKAS,ROHS|
|Minimum Order Quantity:||5 PCS|

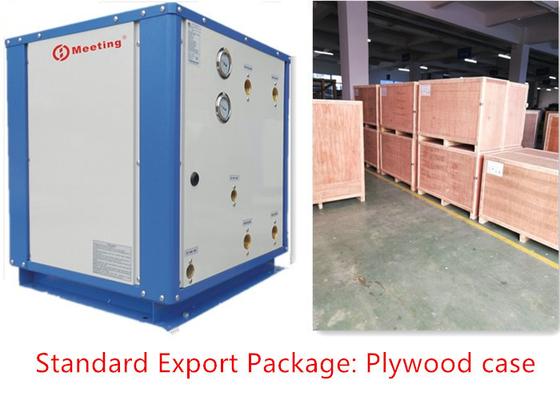

|Packaging Details:||Plywooden case|
|Delivery Time:||15 days|
|Payment Terms:||T/T, WESTERN UNION|
|Materail:||Coated Matel||Contactor:||Fuji Brand|
|Copper Thick:||0.8--1 Mm||Compressor:||With Oil Heater|
|Display:||LCD Finger Touch||Control:||Wifi Function Support|
ground loop heat pump,
underground heat pump

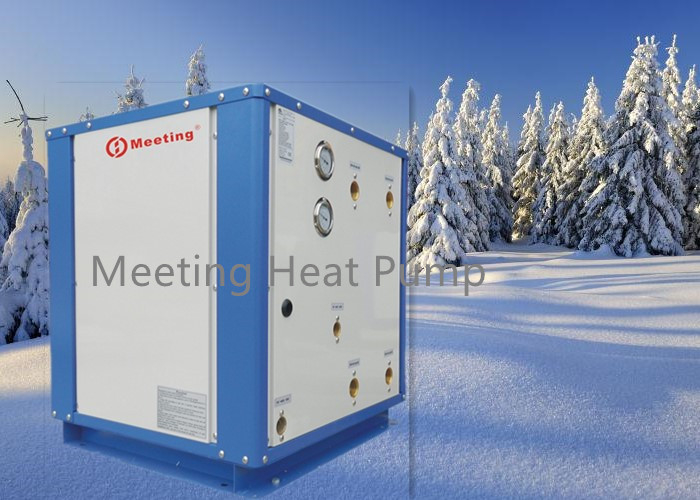

Meeting MDS30D Trinity Ground Source Heat Pump WIFI Control Heating&Cooling&Hot Water Energy Saving Water Heaters
|Input power: 2.9KW||Compressor: brand compressor|
|Heating capacity: 12KW||Water source side water flow: 3300L/H|
|Cooling capacity: 9KW||Hot water side water flow: 3000L/H|
|Rated voltage: 380V/50HZ||Water source side water pipe interface: DN25|
|Rated current: 13A/6A||Hot water side water pipe interface: DN25|
|Water production: 280L/H||Air conditioning side water pipe connection: DN25|
|Rated water temperature: 55 ° C||Evaporator: shell and tube heat exchanger|
|Maximum water temperature: 60 ° C||Condenser: casing heat exchanger|
|Cold water temperature drop: 3-5 ° C||Air conditioner side heat exchanger: plate test heat exchanger|
|Noise Db: ≤ 50Db||Throttle element: thermal valve|
1. Apply for imported compressor and famous accessories, reasonable match makes unit performance perfect.
2. Apply unique dimensional structure design, smaller installation size and no affect for indoor decoration appearance.
3. Unit can be used independently or in modular mode, each unit can be independent charged for easy check computation.
4. Apply for advanced microcomputer control for easy understanding for unit status.
5. High-efficient sound absorption &heating insulating material and double layered vibration damped on design, it features low-noise and bring enjoyment for security.
6. Each maintain, only to demount maintenance plate to repair, it features modular design, other units still can normally operate during maintenance.
Installation different situations:
The ground source heat pump can also be called a soil source. It is buried in underground soil with high-polyethylene U-shaped pipe filled with water and antifreeze. The two ends of the pipe are connected to the evaporator in the ground source heat pump. Water and antifreeze are The circulation in the pipelines will continuously transfer the heat in the soil to domestic water.
Ground source heat pump principle
The difference between the water source heat pump and the air source is that the low-temperature and low-pressure liquid refrigerant exchanges heat with the water in the water/ground source pipeline in the evaporator, absorbs the heat Q1 in the water and evaporates into a low-temperature and low-pressure gaseous state, and then enters into a vaporized state. Compressor works through compressor W, is compressed into high temperature and high pressure gas, then enters condenser, exchanges heat with indoor water, transfers heat Q2 to indoor water, and the refrigerant condenses into high temperature and high pressure liquid, and then enters the expansion valve. With throttling, the refrigerant becomes a low-temperature and low-pressure liquid, and the throttling refrigerant enters the evaporator and undergoes heat exchange and evaporation, thereby realizing inverse carnot
The whole process, also Q2=Q1+W in this process
A. Payment service
B. Technical service
1. We calculate the capacity and recommend the best models.
2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3. We supply the spare parts and technical support in and after the warranty time.
4. We supply the training course to your workers at our factory or site training if you need.
C. After-sales service
1. Technical support for your installation, operation and maintenance.
2. Standard warranty time: One years’warranty for heat pumps.
You can also pay for extended warranty or we can renegotiate the longer warranty period.
3. Spare parts and technical support at most economic prices after the warranty.
Q1. Can I have a sample order for Heat pump or Water tank?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-10days, mass production time depend on the products'quantity.
Q3.Do you offer guarantee for the products?
A: Yes, 12 months since the heat pump depart from the port of loading (Refer to the Bill of Lading).
Certificsate we have got :
Business Organizations, Supermarket, shopping malls, shops, department store, star-rated hotels, restaurants, school, office;
Public Places, subway, airports, stations, bookstores, exhibition halls, stadiums, museums, commercial buildings, hospital;
Entertainments Movie theaters, clubs, bars, cafes, Internet bars, beauty shops
