Fuji Contactor Energy Efficient Heat Pump Air To Water Meeting MD20D 7KW Heating System Water Heaters

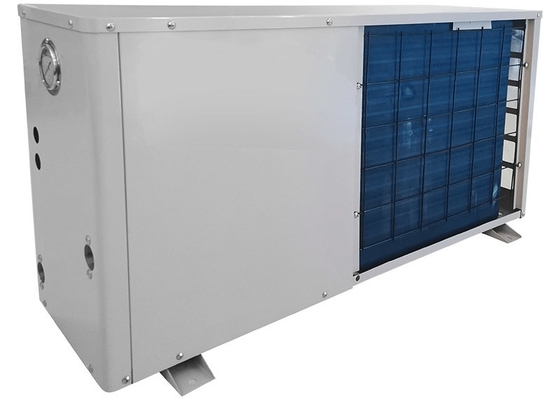

Heat Pump Air to Water Meeting MD20D 7KW Heating System Water Heaters





Technology Specification



Rated input power: 1.84KW	Compressor: Panasonic
Rated heating capacity: 7KW	Working air temp: -15℃—45℃
Hot water supply: 160L/H	Water flow: 2000L/H
Rated voitage: 220V/50HZ	Pipe size: DN25
Rated current: 8A	Super quiet Noise: ≤40Db
Rated outlet water temperature: 55℃	Maximum outlet water temperature: 60℃
Condenser: double threaded copper tube heat exchanger
Evaporator: high efficiency internally threaded tube coupled with hydrophilic aluminum fins
Throttle element: electronic expansion valve
Remarks:The test conditions of above parameter :dry bulb temperature :20℃,wet bulb temperature :17℃, Inlet water temperature 15 degree , Outlet water temperature 55 degree







Packaging & Delivery



Packaging Details: standard export packing: Ply-wooden case with dusty-proof film, needn't fumigation.



Delivery Time: 15-30 days





Air Source Heat Pump Specifications



Air source heat pump heating:

1. High efficiency & energy saving

2. Safe & Comfort

3. Convenient & widely to use





Air Source Heat Pump Heating:



*Long operating life



Using copper in PVC shell & tube heat exchangers, which can resist corrosion from chlorine in the water.





*Economical and high efficiency



Using the more efficient heat pump technology, compared to other ordinary hot water equipment (for example, combustion oil boiler, comb-ussion gas boiler and electrical boiler),it reduces operation cost by 65%~80%,moreover,it produces little pollution for environment.





*Innovative design, easy installation and replacement.



Mono block (single unit conclusion) design, the unit is remarkable compact and easy to install.





*Advanced control



It is extremely easy to control the swimming pump unit because of the built-in computer with its intelligent control and LCD display.





*Use safely







Our Services



1. After installation, our company will be responsible for problems caused by quality of production or raw material except the damageable spare parts of heat pump caused by incorrect man-made operation during the guarantee period.



2. Intelligent Controlling service system will be avoid the long distance of the after sale problem. Wherever are you, our engineer can be controlled your equipment, when some questions occur on the equipment. Just tell us what number will be shown on the screen, then the engineer will be solve the problem.



3. We accept OEM, ODM and customization.



4. 24*7 after sales service. You will get satisfied service.



5. We have More than 19 years production and sales experience; Professional sales team.





Air source heat pump water heater





Advantage feature

• Excellent outlook design wins high appreciation
•
• Compact structure and good demountability
•
• Patented 100% titanium Heat exchanger in PVC & INOX Shell
•
• Intelligent Microcomputer controller
•
• High efficiency compressor with R417A / R407C / R410A / R134A refrigerant
•
• Air exchanger with hydrophilic coating
•
• Automatic defrosting function included
•
• Low noise.



FAQ



• What is your advantage, comparing with other water heaters?

           A: Avoiding electric water heater leakage, dry, high power consumption.

           B: Avoiding the drawbacks of gas water heater, such as producing harmful gases, Fits and starts etc.

           C: Energy efficient, safety and environmental protection, all-weather operation, easy to use.



• What details do you need?

A: Ambient temperature.



B: Water input and output temperature.



• Will it be too trouble to use air water heater?

Easy to use, once set, always have hot/cool water



• How long is the life of air water heater

     Life time is 12-15 years



• How many years guarantee?

1 year
