|Place of Origin:||Guangzhou China|
|Certification:||CE ISO CCC UKAS,ROHS|
|Minimum Order Quantity:||5 PCS|
|Packaging Details:||Plywooden case|
|Delivery Time:||15 days|
|Payment Terms:||T/T, L/C WESTERN UNION|
|Materail:||Galvanized Steel Sheet||Contactor:||Fuji Brand|
|Copper Pipe Thick:||1 Mm||Compressor:||ZW Series ,With Crank Heating|
|Working Temperature:||-20--45 Degree||Insulation:||Foam Pack Pipe And Stick On The Machine Innner|

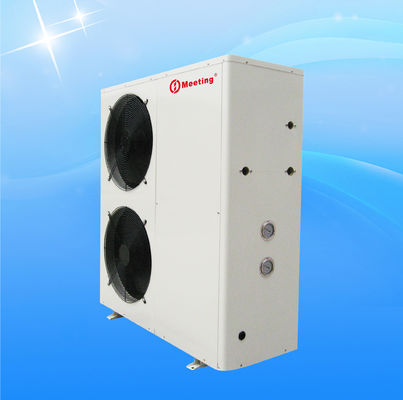

high temperature air source heat pump,
swimming pool water heater heat pump
Meeting 380V Commercial energy efficient heat pump support Wifi
Important Air to Water heat pump information :
Certification:CE ISO CCC UKAS,ROHS
Place of Origin:Guangdong, China (Mainland)
Condenser:Double thread copper tube heat exchanger
Evaporator:High efficiency inner thread tube connected with
Throttling Device:Electric expansiona valve
Net Weight (kg):210
Working air temp range:-25—(45)
»Indoor unit mainly includes condenser, 4-way valve and expansion valve.
» Outdoor unit comprises evaporator, fan and compressor.
»Auxiliary electronic heater or solar coiler is on your option
» Fashionable design, compact structure, saving the place.
»Quiet, lower the noise when the unit is running
»Advance control panel. Timer function , automatic defrosting function, optional electrical heating, error messages showed for warning.
»It can be work in -25°C low ambient temperature.
Hot water output temperature up to 60°C, for domestic hot water or heating.
auto-defrosting function included. And cooling is optional
Air source heat pump working principle
|According to the principle of reverse Carnot cycle, the low-temperature and low-pressure liquid refrigerant exchanges heat with the surrounding air in the evaporator, absorbs the heat Q1 in the air and evaporates into a low-temperature and low-pressure gas state, the temperature of the refrigerant does not change during evaporation, and the low-temperature and low-pressure gas refrigerant After entering the compressor, the compressor is used to do work W. It is compressed into high-temperature and high-pressure gas. Then it enters the condenser. In the condenser, it exchanges heat with indoor water. Part of the heat Q2 of the high-temperature and high-pressure gaseous refrigerant is absorbed by the water. As the temperature rises, the refrigerant radiates heat and condenses and turns into a high-temperature, high-pressure liquid. During the condensation, the temperature of the refrigerant is constant and then enters the expansion valve for throttling. Throttling is a process of rapid cooling, and the refrigerant turns into a low-temperature and low-pressure liquid. This process is just like Contrary to the situation in the compressor, the refrigerant after throttling enters into the evaporator for heat exchange, thereby realizing the entire process of reverse Carnot. This cycle is continuous, and the air source heat pump can work continuously and keep the water temperature constant. Increased
So Q2=Q1+W in this process
Packaging & Shipment
1>Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.
2>Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transporattion .
3>All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.
4>Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.
5>Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)
Packaging Details :Standard export packing -with plywoods case packages,OEM is available for Factory price heat pump water heaters
Delivery Time :15 work days after arrival of down payment
Q1. Can I have a sample order for Heat pump or Water tank?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-10days, mass production time depend on the products'quantity.
Q3.Do you offer guarantee for the products?
A: Yes, 12 months since the heat pump depart from the port of loading (Refer to the Bill of Lading).
Certificsate we have got :
1. We promise to offer free consulting call in 7~24 hours mode to solve the problems found in practice.
2. Products guarantee is 18~24 months from ex-factory date. Within 18months,if any components of your products damaged because of quality, we supply new replacement for free.
3. After the expiration of the quality assurance, we will continue to provide lifelong maintenance services, with just charging some cost price.
