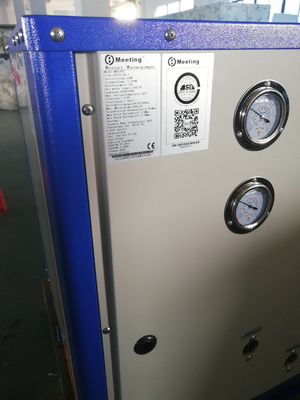

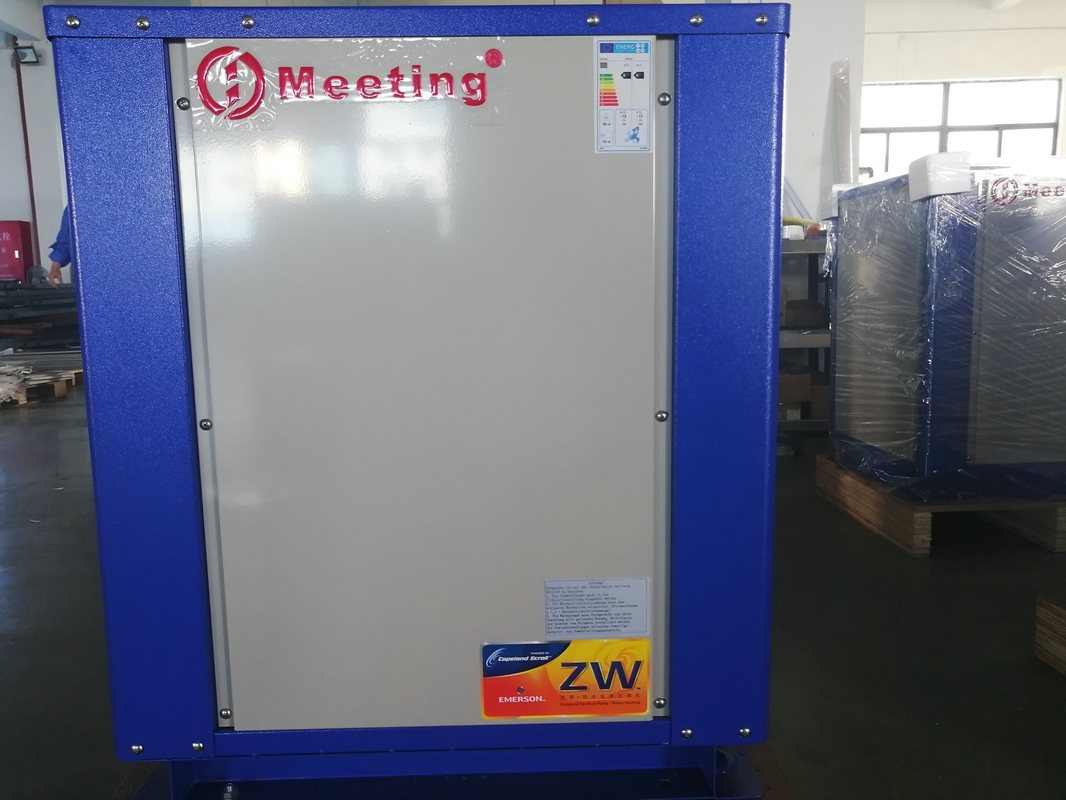

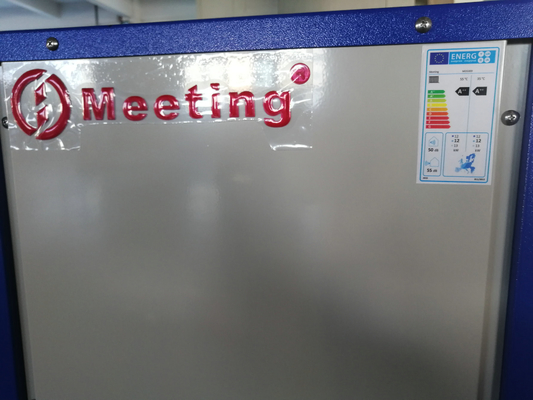

Floor Heating Water To Water Geothermal Ground Source Heat Pump Wifi Function Support

Floor Heating Water to Water Geothermal Ground Source Heat Pump



Technology Specification



Porduct Details:



MODEL		Unit	MDS15D
Rated heating capacity		KW	5
Hot water supply		L/h	100
Average heating input power		KW	1.2
Rated heating input current		A	6
Max outlet water temp		℃	80
COP			4
Power		V/Hz	220V/50
Noise		Db(a)	50
Dimension	W*D*H	mm	657×557×765
Packing size	W*D*H	mm	737×637×915
Unit weight		KG	75
Refrigerant			R134A
Working air temp range		℃	(-40℃)—45℃
compressor	Type		Panasonic
water source heat exchanger	Type		Plate heat exchange
	Pipe size	DN	25
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	2000L/h
	Water pressure down	Kpa	30
	Pipe size	DN	25
	Max house heating	M2	40





Porduct feature:

1. Adopt world famous brand compressor.



2. High purity refrigerant: R410a/R407C, to make sure high COP.



3. Optimized system design: R410a/R407C system with accurate capillary tube or electronic expansion valve, achieving stable operation and high COP in wide ambient temperature range.



4. Big heat exchangers: big hydrophilic fin-tube heat exchanger, big titanium coil heat exchanger, (maybe the biggest one in China), to make sure high COP in wide ambient temperature range.



5. Big and strong case: allowing built-in big heat exchangers, and reducing vibration and noise.



6. Advanced control: the quick-mind microchip LCD controller (Carel controller is optional) provides extremely convenient control on the heat pump.



7. Comprehensive protection: the heat pump is protected fully, including water flow, water temperature, compressor pressure and temperature, temperature for heat exchanger, and anti-freezing for heat exchanger and so on.



8. Quiet: using the high-efficiency, low noise rotary or scroll compressor, low noise fan.





Why choose us

• Professional:18 years focus one thing
•
• Material we use sufficient
•
• Certificate:CE, ISO, and cetiifcate of producing special pressure equipment



Use introduction



Packaging & Shipment

1>Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.



2>Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transporattion .



3>All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.



4>Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.



5>Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)

Packaging Details :Standard export packing -with plywoods case packages,OEM is available for Factory price heat pump water heaters

Delivery Time :15 work days after arrival of down payment





QC

1. Complying with ISO standard. Quality Ensured.



2. Complete Inspection for each unit before out of factory, covering water system and electricity detection and testing, ensuring 100% right product before shipment.



3. Strict quality control during production. We have liquid soap detection, halogen detection, electrical detection and water-soaking detection during production to avoid gas leakage and electrical problems .



4. Full inspection on bigger parts such as compressors, condensers, evaporators, expansion valves, flow switches, controllers etc.. Selection inspection for small parts such as sensors, pressure switches etc..



5. Well noise control by using mute cotton for casing plates and soft rubber feet for floating compressors, some of the models use compressor isolation shields.



6. Well insulated with insulated cotton for every pipe and parts, include compressor, dryer filter and each pipes.



7. We have passed TUV and SGS inspections. We have CE, RoHs, IEC, CCC, CB certificates for most of our products. Some of our products have en14511 test, en14825 test.





A. Payment service

1. T/T

2. L/C (for container order only)



B. Technical service

1. We calculate the capacity and recommend the best models.



2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.



3. We supply the spare parts and technical support in and after the warranty time.



4. We supply the training course to your workers at our factory if you need.



5. We can offer site training to your workers in your place which is negotiable.



C. After-sales service

1. Technical support for your installation, operation and maintenance.



2. Standard warranty time: One years’warranty for heat pumps

You can also pay for extended warranty or we can renegotiate the longer warranty period.



3. Spare parts and technical support at most economic prices after the warranty.
