|Place of Origin:||Guangzhou China|
|Certification:||CE ISO CCC UKAS,ROHS|
|Minimum Order Quantity:||5 PCS|
|Packaging Details:||Plywooden case|
|Delivery Time:||15 days|
|Payment Terms:||T/T, L/C WESTERN UNION|
|Materail:||Galvanized Steel Sheet||Contactor:||Fuji Brand|
|Copper Pipe Thick:||1 Mm||Compressor:||ZW Series ,With Crank Heating|
|Working Temperature:||-40--45 Degree||Insulation:||Foam Pack Pipe And Stick On The Machine Innner|
|Throttle:||Thermal Expansion Valve|
ground loop heat pump,
underground heat pump
Meeting-Ground source heat pump 5HP machine 380V heating hot water and cooling support WIFI .

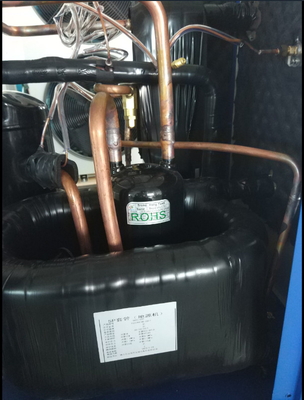

1 compressor The world-famous Copeland Flexible Scroll Compressor has functions such as low wear resistance, long service life, over - current protection, phase loss protection, over - the - counter protection, strong liquid - impact resistance, and high and low voltage protection. Copeland compressor built-in pressure relief valve in the body can automatically relieve pressure when the high pressure is too high
2. Evaporation heat exchanger The use of high efficiency plate heat exchanger, high heat transfer efficiency, small footprint, and has a small heat dissipation characteristics, in the case of water quality is not very bad, the use of plate heat exchanger is the best choic
3. Can work stably at -25DegC ambient and the COP at -15DegC ambient is up to 2.5.
4. Can work with auxiliary heater.
5. Using electronic expansion valve, achieving accurate, stable and high efficiency throttling.
6. Split design, no water system outside, no freezing and damage to water system. Optional refrigerant pipe quick connection is available, to reduce installation cost.
7. Electronic expansion valve The introduction of the latest Japanese technology in conjunction with the company's control system has led to the development of a unique electronic expansion valve control method and the use of digital technology control to control the working fluid to achieve the best flow velocity effect, thereby increasing the COP value.
8. The refrigerant connections are designed to allow hiding all pipes, wires into the ground to ensure good looking installation.
Certificate we have got :
1> ISO 9001, ISO 14000
2> Our company has been inspected and certificate by EMC
3> CE And EN14511, EN 14825-ERP for heat pump exported to Europe
4> Energy label for all heat pump models sold to oversea market
Testing laboratory calibrated by CNAS
1. We calculate the capacity and recommend the best models.
2. We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3. We supply the spare parts and technical support in and after the warranty time.
4. We supply the training course to your workers at our factory if you need.
5. We can offer site training to your workers in your place which is negotiable
1. Complying with ISO standard. Quality Ensured.
2. Complete Inspection for each unit before out of factory, covering water system and electricity detection and testing, ensuring 100% right product before shipment.
3. Strict quality control during production. We have liquid soap detection, halogen detection, electrical detection and water-soaking detection during production to avoid gas leakage and electrical problems .
4. Full inspection on bigger parts such as compressors, condensers, evaporators, expansion valves, flow switches, controllers etc.. Selection inspection for small parts such as sensors, pressure switches etc..
5. Well noise control by using mute cotton for casing plates and soft rubber feet for floating compressors, some of the models use compressor isolation shields.
6. Well insulated with insulated cotton for every pipe and parts, include compressor, dryer filter and each pipes.
7. We have passed TUV and SGS inspections. We have CE, RoHs, IEC, CCC, CB certificates for most of our products. Some of our products have en14511 test, en14825 test.
Q1. Can I have a sample order for Heat pump or Water tank?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-10days, mass production time depend on the products'quantity.
Q3.Do you offer guarantee for the products?
A: Yes, 12 months since the heat pump depart from the port of loading (Refer to the Bill of Lading).
Certificsate we have got :
Our leading products
Air to water heat pump , DC inverter heat pump, High water temperature heat pumps
Monoblock house heating heat pumps ,Split heat pump ,Super low noise heat pump
Heat pump dryer ,Ground source heat pump , water to water heat pump , swimming pool heat pump
Trinity multi-function bathroom heaters , hot house , water heaters , geothermal source or water soure heat pump
Packaging & Shipment
1>Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.
2>Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transportation .
3>All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.
4>Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.
5>Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)
Packaging Details: Standard export packing -with plywood case packages, OEM is available for Factory price heat pump water heaters
Delivery Time: 15 work days after arrival of down payment
Trinity multi-function heating and cooling machine with anti corrosive treatment blue and white surface
|Rated heating capacity||KW||19|
|Hot water supply||L/h||400|
|Average heating input power||KW||4.4|
|Rated heating input current||A||9|
|Max outlet water temp||℃||80|
|Working air temp range||℃||(-40℃)—45℃|
|water source heat exchanger||Type||Plate heat exchange|
|Hot water side heat exchange||Type||Coil heat exchanger|
|Water pressure down||Kpa||40|
|Max house heating||M2||150|
