19 Years Professional Heat Pump Manufacturer!
Place of Origin: | Guangzhou China |
Brand Name: | Meeting |
Certification: | CE ISO CCC UKAS,ROHS |
Model Number: | MD40D |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiation |
Packaging Details: | Plywooden case |
Delivery Time: | 10 days |
Payment Terms: | T/T, WESTERN UNION |
Supply Ability: | 800/MONTH |
Materail: | Galvanized Steel Sheet | Contactor: | Fuji |
---|---|---|---|
Copper Pipe Thick: | 0.8-1 Mm | Rated Heating Capacity: | 15KW |
Power: | 220V/50 Hz | Refrigerant: | R22/R417A/R407C/R410A/R32 |
Compressor: | ZW Series ,With Crank Heating | Working Temperature: | -15℃--45℃ |
Insulation: | Foam Pack Pipe And Stick On The Machine Innner | Defrosting: | Automaticlly |
Installation:: | Freestanding | Unit Weight: | 160KG |
Noise: | ≤55Db(a) | ||
High Light: | air temp heat pump,domestic air source heat pump |

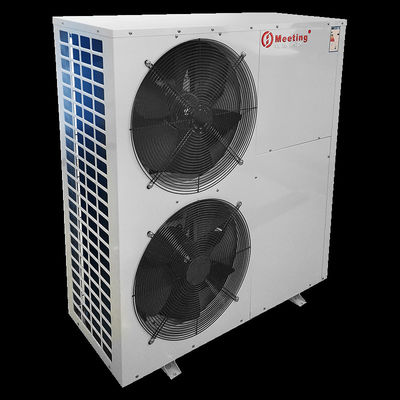

R32 Refrigerant Air Source Heat Pump Meeting MD40D 15kw for Use of Kindergarten Places with WIFI Controller
Air Source Heat Pump Specifications
MODEL | MD40D |
Heating capacity: 15KW | Noise: ≤55Db(a) |
Rated power: 3.78 KW | Interface size: 25DN |
Rated current: 15A | Working environment temperature: (-15 ° C) - 45 ° C |
Rated water temperature: 55 ° C | Maximum water temperature: 60 ° C |
Voltage / frequency: 220V /50Hz | Water production: 350L/h |
Water flow: 5000L/h | Side outlet wind dimension W*D*H 1120 *490*1260 mm. |
Air Source Heat Pump heat pump heating:
1. High efficiency & energy saving
2. Safe & Comfort,
3. Convenient & widely to use
Air Source Heat Pump heat pump heating:
*Economical and high efficiency
Using the more efficient heat pump technology, compared to other ordinary hot water equipment (for example, combustion oil boiler, comb-ussion gas boiler and electrical boiler),it reduces operation cost by 65%~80%,moreover,it produces little pollution for environment.
*Innovative design, easy installation and replacement.
Mono block (single unit conclusion) design, the unit is remarkable compact and easy to install.
*Advanced control
It is extremely easy to control the swimming pump unit because of the built-in computer with its intelligent control and LCD display.
*Use safely
Our Services
1. After installation, our company will be responsible for problems caused by quality of production or raw material except the damageable spare parts of heat pump caused by incorrect man-made operation during the guarantee period.
2. Intelligent Controlling service system will be avoid the long distance of the after sale problem. Wherever are you, our engineer can be controlled your equipment, when some questions occur on the equipment. Just tell us what number will be shown on the screen, then the engineer will be solve the problem.
3. We accept OEM, ODM and customization.
4. 24*7 after sales service. You will get satisfied service.
5. We have 19 years production and sales experience; Professional sales team.
Air source swimming pool/bath/hotel heat pump water heater
Advantage feature
Main spapre parts
Application:
Air source heat pump (Trinity) is designed for house heating, cooling and hot water. User can change the working mode by operating wired panel of controller. Compressor start/stop according to hot water temperature and A/C return water temperature. Hot water circulating water pump start/stop according to hot water tank temperature, A/C water circulating water pump is non-stop.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
FAQ
A: Pool: Length, width, depth.
B: Ambient temperature.
C: Water input and output temperature.
Easy to use, once set, always have hot/cool water
Life span is about 15 years
1 years
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Packaging & Shipment
1> Meeting heat pump can sure delivery heat pump within 5~20 working days if we have material instock.
2> Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transportation
3> All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.
4> Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.
5>Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)
6>Packaging Details :Standard export packing - with plywood case, OEM is acceptable.
7>Delivery Time :15 working days receive the deposit.
