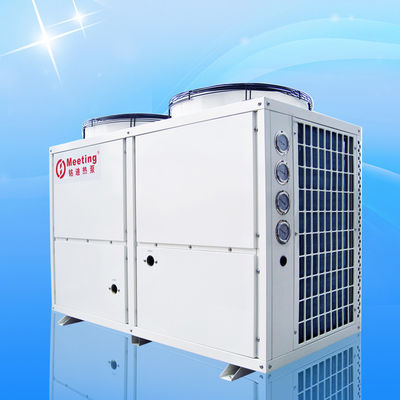

Ourdoor Electric Air Source Heat Pump Safe & Comfort Lower Heat Dissipate

Ourdoor Electric Air Source Heat Pump Safe & Comfort Lower Heat Dissipate

  • Ourdoor Electric Air Source Heat Pump Safe & Comfort Lower Heat Dissipate
  • Ourdoor Electric Air Source Heat Pump Safe & Comfort Lower Heat Dissipate
  • Ourdoor Electric Air Source Heat Pump Safe & Comfort Lower Heat Dissipate
Ourdoor Electric Air Source Heat Pump Safe & Comfort Lower Heat Dissipate
Product Details:
Place of Origin: Guangzhou China
Brand Name: Meeting
Certification: CE ISO CCC UKAS,ROHS
Model Number: MD100D
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Price: Negotiation
Packaging Details: Plywooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C WESTERN UNION
Supply Ability: 800/MONTH
Contact Now
Detailed Product Description
Materail: Coated Matel Contactor: Fuji Brand
Copper Thick: 1 Mm Compressor: With Oil Heater
Display: LCD Finger Touch Control: Wifi Function Support
Heating Capacity: 36KW Cop: 4.2
High Light:

indoor air source heat pump


domestic air source heat pump

Technology Specification



Porduct Details


Rated heating capacity KW 36
Rated Cooling capacity   24
Hot water supply L/h 800
Average heating input power KW 9.2
Rated heating input current A 18
Max outlet water temp 80
COP   4.2
Power V/Hz 380V/50
Noise Db(a) 60
Dimension W*D*H mm 1450×760×1060
Packing size W*D*H mm 1520*800*1230
Unit weight KG 289
Refrigerant   R417A/R407C/R404A
Working air temp range   (-20℃)—45℃
compressor Type   Copeland
Air source heat exchanger Type   Finned heat exchange
Fan Type   axial flow fan
Hot water side heat exchange Type   Coil heat exchanger
Water flow L/H 10000L/h
Water pressure down Kpa 54
Pipe size DN 32
Max flat spuare meter M2 300



Air source heat pump feature:

» Indoor unit mainly includes condenser, 4-way valve and expansion valve.

  • Avoid the condenser to be burst in the cold weather, better anti-freezing proctection
  • High efficient, lower heat dissipate

» Outdoor unit comprises evaporator, fan and compressor.

  • Thermostatic heating element for evaporator anti-frosting protection
  • The water connections and the drain pipelines must be protected against frost on site
  • compressor outside ,to reduce noise mostly inside the house.

» Auxiliary electronic heater or solar coiler is on your option


» Fashionable design, compact structure, saving the place.


» Quiet, lower the noise when the unit is running


» Advance control panel. Timer function , automatic defrosting function, optional electrical heating, error messages showed for warning.


» It can be work in -25°C low ambient temperature.


Hot water output temperature up to 60°C, for domestic hot water or heating.


auto-defrosting function included. And cooling is optional



Air source heat pump working principle:

According to the principle of reverse Carnot cycle, the low-temperature and low-pressure liquid


refrigerant exchanges heat with the surrounding air in the evaporator, absorbs the heat Q1 in the air and


evaporates into a low-temperature and low-pressure gas state, the temperature of the refrigerant does


not change during evaporation, and the low-temperature and low-pressure gas refrigerant After entering


the compressor, the compressor is used to do work W. It is compressed into high-temperature and high-


pressure gas. Then it enters the condenser. In the condenser, it exchanges heat with indoor water. Part


of the heat Q2 of the high-temperature and high-pressure gaseous refrigerant is absorbed by the water.


As the temperature rises, the refrigerant radiates heat and condenses and turns into a high-temperature,


high-pressure liquid. During the condensation, the temperature of the refrigerant is constant and then


enters the expansion valve for throttling. Throttling is a process of rapid cooling, and the refrigerant turns


into a low-temperature and low-pressure liquid. This process is just like Contrary to the situation in the


compressor, the refrigerant after throttling enters into the evaporator for heat exchange, thereby


realizing the entire process of reverse Carnot. This cycle is continuous, and the air source heat pump


can work continuously and keep the water temperature constant. Increased
So Q2=Q1+W in this process


Ourdoor Electric Air Source Heat Pump Safe & Comfort Lower Heat Dissipate 0


Ourdoor Electric Air Source Heat Pump Safe & Comfort Lower Heat Dissipate 1


Why us?


1.Timely Delivery, considerate sales after service


2.Many Years quality warranty,OEM service.


3.Top Craftmanship, All products 100% tested


4.Preferential freight by Famous shipping company


5.New Design,Very popular style products recommendation for your local market



After selling
1. We promise to offer free consulting call in 7~24 hours mode to solve the problems found in practice.


2. Products guarantee is 18~24 months from ex-factory date. Within 18months,if any components of your products damaged because of quality, we supply new replacement for free.


3. After the expiration of the quality assurance, we will continue to provide lifelong maintenance services, with just charging some cost price.



Business Organizations

Supermarket, shopping malls, shops, department store, star-rated

hotels, restaurants, school, office;

Public Places

subway, airports, stations, bookstores, exhibition halls, stadiums, museums, commercial buildings, hospital;

Entertainments Movie theaters, clubs, bars, cafes, Internet bars, beauty shops



 Packaging Details

 Carton and Wooden Package,

 Delivery Time

 15 working days after arrival of down payment
