ISO9001 Certified High Efficiency Swimming Pool Heat Pump 100KW

ISO9001 Certified High Efficiency Swimming Pool Heat Pump 100KW

  • ISO9001 Certified High Efficiency Swimming Pool Heat Pump 100KW
  • ISO9001 Certified High Efficiency Swimming Pool Heat Pump 100KW
  • ISO9001 Certified High Efficiency Swimming Pool Heat Pump 100KW
ISO9001 Certified High Efficiency Swimming Pool Heat Pump 100KW
Product Details:
Place of Origin: Guangzhou China
Brand Name: Meeting
Certification: CE ISO CCC UKAS,ROHS
Model Number: MDY300D
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Price: Negotiation
Packaging Details: Plywooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C WESTERN UNION
Supply Ability: 800/MONTH
Contact Now
Detailed Product Description
Materail: Galvanized Steel Sheet Contactor: Fuji
Copper Pipe Thick: 1 Mm Compressor: ZW Series ,With Crank Heating
Working Temperature: -20--45 Degree Insulation: Foam Pack Pipe And Stick On The Machine Innner
Defrosting: Automaticlly Power: 380V/50Hz
Packing Size: 2080×1150×2130mm Unit Weight: 650KG
Rated Heating Capacity: 100KW Refrigarant: R417A/R407C/R410A/R22
Water Flow: 45000L/h Noise: 68Db(a)
Use: Swimming Pool, SPA, Hot Spring,ect... Average Heating Inqut Power: 25KW
High Light:

swimming pool air source heat pump


inground pool heat pump

Swimming Pool Heat Pump Lower Running Noise 100kw Heating capacity



                                                  Technology Specification


Product description

Heat pump used the heat from the air -20℃ below the cold coal recovery after compressed into a high temperature and high pressure refrigerant,


it needs to be heated by heat transfer of water or other medium,


make the heat efficiency of 400-500%.



Swimming pool heat pump

Meeting Swimming Pool Heat Pump is one of the most economical systems to heat the swimming pool efficiently.


Using the free renewable energy from the air and the earth it delivers up to 5 times more energy in heating


than a traditional heating system such as gas boiler or electric heater. So you will save 4/5 cost of the


traditional heating. The unit is working at low running costs, no direct CO2emissions and are able to be


integrated with energy systems like solar and boiler. Meeting pool heat pump lengthens your swimming


season and gives you comfort at high level. You could enjoy swimming not only in summer, but also in


spring, autumn and even winter time.



swim pool heat pump features:

1.Safety:water and electric separately.


2. Anti-corrosion: Plastic case,Coated steel or SUS304# stainless steel case are available.


3.World famous brand compressor,4-way valve,motor,PCB,Titanium heat exchanger,


4. Convenient: Intelligent microprocessor with touch screen display.Trouble shoot shows on display board automatically.


5. World famous brand compressor,4-way valve,motor,PCB,heat exchanger,Emerson ALCO expansion valve used

to ensure top quality an high efficiency(Energy-Saving as much as 75%).


6. Multiple protection function:High pressure,low pressur,overheating,overload anti-freezing,phase sequence,

discharge temperature,suction temperature and so on.


7. All weather operation: stable operation without being influenced by weather.


8. Refrigerant of R22,R407C,R134A, R417A/ R410A are for optional.


9. Automatically defrosting function included


  • FAQ
  • What is your advantage, comparing with other water heaters?
    • A: Avoiding electric water heater leakage, dry, high power consumption.

    • B: Avoiding the drawbacks of gas water heater, such as producing harmful gases,
    • Fits and starts etc.

    • C: Energy efficient, safety and environmental protection, all-weather operation, easy to use.


  • What details do you need?

A: Pool: Length, width, depth.

B: Ambient temperature.

C: Water input and output temperature.


  • Will it be too trouble to use air water heater?

Easy to use, once set, always have hot/cool water


  • How long is the life of air water heater

Life span is 12-15 years


  • How many years guarantee?

1 years




Installation Sample drawing

ISO9001 Certified High Efficiency Swimming Pool Heat Pump 100KW 0

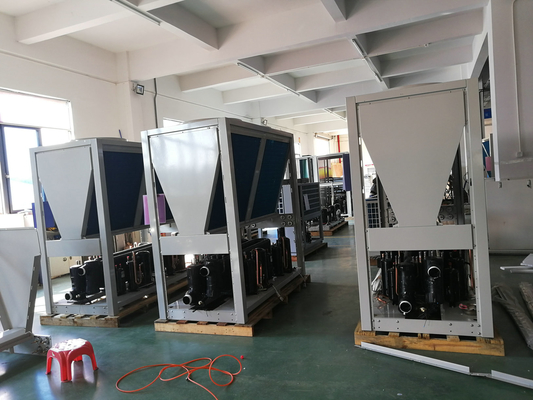

Swimming pool project case for you reference


ISO9001 Certified High Efficiency Swimming Pool Heat Pump 100KW 1



Packaging & Shipment

1> Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.


2> Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transportation


3> All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.


4> Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.


5> Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)

Packaging Details :Standard export packing -with plywood case packages,OEM is available for Factory price heat pump water heaters

Delivery Time :15 work days after arrival of down payment
