Industrial Hot Water Hydronic Heat Pump 1120 * 490 * 710mm Long Operating Life

Industrial Hot Water Hydronic Heat Pump 1120 * 490 * 710mm Long Operating Life

  • Industrial Hot Water Hydronic Heat Pump 1120 * 490 * 710mm Long Operating Life
  • Industrial Hot Water Hydronic Heat Pump 1120 * 490 * 710mm Long Operating Life
  • Industrial Hot Water Hydronic Heat Pump 1120 * 490 * 710mm Long Operating Life
  • Industrial Hot Water Hydronic Heat Pump 1120 * 490 * 710mm Long Operating Life
Industrial Hot Water Hydronic Heat Pump 1120 * 490 * 710mm Long Operating Life
Product Details:
Place of Origin: Guangzhou China
Brand Name: Meeting
Certification: CE ISO CCC UKAS,ROHS
Model Number: MD30D
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Price: Negotiation
Packaging Details: Plywooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C WESTERN UNION
Supply Ability: 800/MONTH
Contact Now
Detailed Product Description
Materail: Coated Matel Contactor: Fuji Brand
Copper Thick: 1 Mm Compressor: With Oil Heater, Copeland
Display: LCD Finger Touch Control: Wifi Function Support
Heating Capacity: 12KW Cooling: 7kw
Installation: Freestanding Refrigerant: R417A/R410A/R407C/R22
Highlight:

cold climate air source heat pump

,

american standard heat pump

Air to water heat pump Domestic hot water 220V / 380V50HZ Rated heating capacity 12kw




Technology Specification

Porduct Details


Rated heating capacity KW 12
Rated Cooling capacity   7
Hot water supply L/h 260
Average heating input power KW 3
Rated heating input current A 13/6
Max outlet water temp 60
COP   4
Power V/Hz 220V/380/50
Noise Db(a) 54
Dimension W*D*H mm 1120*490*710mm
Packing size W*D*H mm 1190*520*865mm
Unit weight KG 108
Refrigerant   R417A/R407C/R404A
Working air temp range   (-20℃)—45℃
compressor Type   Copeland
Air source heat exchanger Type   Finned heat exchange
Fan Type   axial flow fan
Hot water side heat exchange Type   Coil heat exchanger
Water flow L/H 3000L/h
Water pressure down Kpa 40
Pipe size DN 25
Max flat spuare meter M2 100


 Main  Accessories :

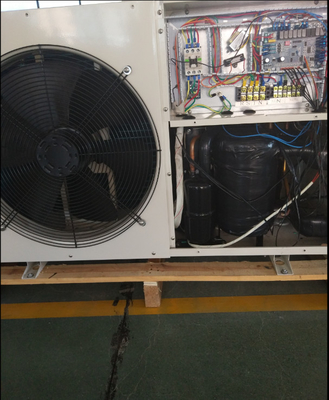

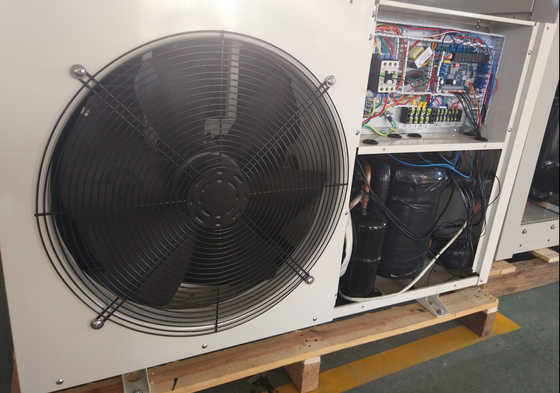

1 . Compressor

The world - famous Copeland Flexible Scroll Compressor has functions such as low wear resistance, long service life, over-current protection, phase loss protection, over - the-counter protection, strong liquid - impact resistance, and high and low voltage protection. Copeland compressor built - in pressure relief valve in the body can automatically relieve pressure when the high pressure is too high



2 . Electronic expansion valve

The introduction of the latest Japanese technology in conjunction with the company's control system has led to the development of a unique electronic expansion valve control method and the use of digital technology control to control the working fluid to achieve the best flow velocity effect, thereby increasing the COP value.

In combination with the United States and the United States outside the threaded pipe technology, successfully created a "spring" spiral tube new structure condenser. Better heat transfer, faster heat transfer, and higher efficiency, minimize fouling, extend heat pump life and reduce maintenance



3. Electronic control system
With powerful engineering supporting control functions, it can control circulating water pump, make-up water, return water, water supply, electric heating, PID automatic defrosting, etc., making the control easier. According to the needs of different projects, it can set various parameters by itself and realize various water supply schemes. The entire system can be automated without special care.

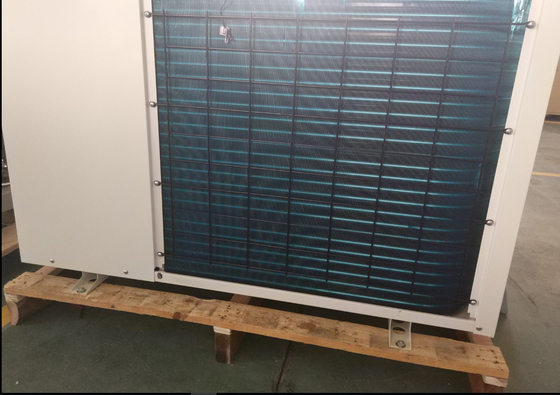

4 . Evaporation heat exchanger

The use of hydrophilic membrane aluminum foil, even after long-term use
The use of a hydrophilic layer also does not result in oxidative detachment. this The evaporator has a special advantage: Excellent skis performance The more you can reduce the wind resistance, so that the condensate drains out quickly outer. Internally-threaded copper tube and corrugated aluminum foil structure  High evaporator efficiency.


QC
1 .  Complying with ISO standard. Quality Ensured .


2 . Complete Inspection for each unit before out of factory , covering water system and electricity detection and testing , ensuring 100 % right product before shipment .


3 . Strict quality control during production . We have liquid soap detection , halogen detection , electrical detection and water - soaking detection during production to avoid gas leakage and electrical problems .


4 . Full inspection on bigger parts such as compressors, condensers, evaporators, expansion valves , flow switches, controllers etc .. Selection inspection for small parts such as sensors, pressure switches etc ..



A Packaging Details
Carton and Wooden Package,

B Payment Terms
T/T
L/C (for container order only)

C Delivery Time
15 working 15 days after arrival of down payment



FAQ



Q1. Can I have a sample order for Heat pump or Water tank?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 3-10days, mass production time depend on the products'quantity.



Q3.Do you offer guarantee for the products?

A: Yes, 12 months since the heat pump depart from the port of loading (Refer to the Bill of Lading).



Certificsate we have got :

  • ISO 9001, ISO 14000
  • Our company has been inspected and certificate by EMC
  • CE And EN14511, EN 14825-ERP for heat pump exported to europe
  • Energy label for all heat pump models sold to oversea market
  • Testing laboratory calibrated by CNAS



Our leading products

Air to water heat pump ,  inverter heat pump, High water temperature heat pumps

Monoblock house heating heat pumps ,Split heat pump ,Super low noise heat pump

Heat pump dryer ,Ground source heat pump , water to water heat pump , swimming pool heat pump
