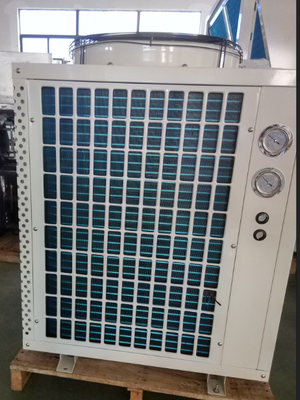

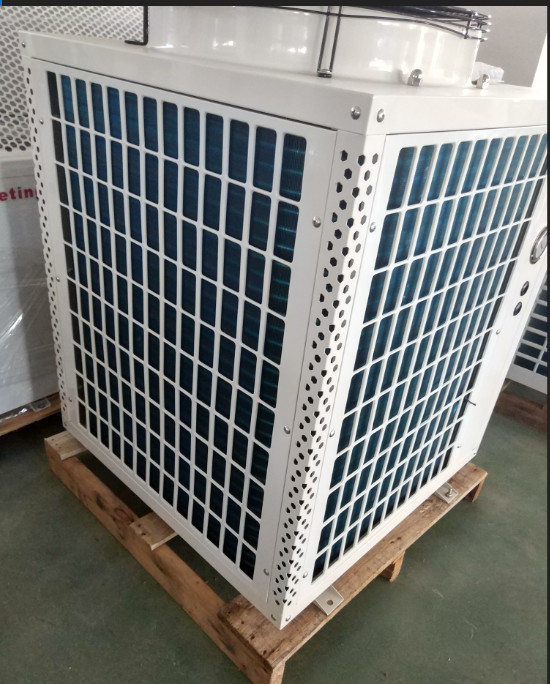

Hot Comfortable Water Swimming Pool Heat Pump With Digital LCD Display Wire Control Panel

19KW heating Constant temperature swimming pool heat pump Hot comfortable water for swimming



Technology Specification



Advantage

*Constant heating and cooling function, applicable to swimming pool, Spa or fish cultivation.

*Advanced corrosion resistance Titanium heat exchanger, virtually impervious to water chemistry damage.

*World famous Japanese brand compressor.

*Digital LCD display wire control panel, controls water temperature to within 1-5°C difference from set point.

*On-off timing function, no human attendance is required for operation once started.

*Insufficient water flow protection & high/low pressure protection.

*Auto defrosting with 4-way valve, ensure reliably running at low ambient temperature.

*Warms your pool or SPA with the reliability and efficiency can also cool your pool and SPA

during hot summer season.





Swimming pool heat pump main part



1.Condensation heat exchanger
In combination with the American and foreign thread tube technology, a new type of "spring" type spiral tube condenser was successfully manufactured. Better heat transfer, faster heat transfer, and higher efficiency, minimize fouling, extend heat pump life and reduce maintenance.



2.Shell tube heat exchanger
Shell and tube heat exchangers are specialized for water
Heat pump, its structure is easy to clean and
maintain.



3.Evaporation heat exchanger
The use of a high-efficiency plate heat exchanger has high heat transfer efficiency, small footprint, and small heat dissipation. In the case of poor water quality, the use of a plate heat exchanger is the best choice.



4.Electronic expansion valve
The introduction of the latest Japanese technology in conjunction with the company's control system has led to the development of a unique electronic expansion valve control method and the use of digital technology control to control the working fluid to achieve the best flow velocity effect, thereby increasing the COP value



5.Evaporation heat exchanger
The hydrophilic membrane aluminum foil used does not cause oxidative separation even after long-term use of the hydrophilic layer. This type of evaporator has a special point: superior water-skipping performance, which can reduce the wind resistance, so that the condensate drain out of the machine quickly. Internally-threaded copper tubes and corrugated aluminum foil structures greatly enhance the evaporator's



6.Titanium tube heat exchanger
Titanium, a corrosion-resistant material, is used as a heat exchange material and is mainly used as a heat exchanger for swimming pool water, salt water, industrial water, etc., which have relatively high chloride ion content.



7.Electronic control system
With powerful engineering supporting control functions, cold and heat source end and load end circulating water pump, backwater, electric heating, antifreeze, etc., make the control easier. According to the needs of different projects, it can set various parameters by itself to realize various water supply schemes. The entire system can be automated without special care.





Swimming pool heat pump parameters tables



MODEL		Unit	MDY10D
Rated heating capacity		KW	3.5
Average heating input power		KW	0.8
Rated heating input current		A	6
Max outlet water temp		℃	35
COP			3.8
Power		V/Hz	220V/50
Noise		Db(a)	48
Dimension	W*D*H	mm	1140×360×538
Packing size	W*D*H	mm	1180*380*680
Unit weight		KG	70
Refrigerant			R417A/R410
Working air temp range		℃	(-20℃)—45℃
compressor	Type		Panasonic
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Titanium heat exchanger
	Water flow	L/H	1200L/h
	Water pressure down	Kpa	30
	Pipe size(water connection)	DN	50
MODEL		Unit	MDY15D
Rated heating capacity		KW	5.5
Average heating input power		KW	1.25
Rated heating input current		A	6
Max outlet water temp		℃	35
COP			3.8
Power		V/Hz	220V/50
Noise		Db(a)	48
Dimension	W*D*H	mm	1140×360×539
Packing size	W*D*H	mm	1180*380*680
Unit weight		KG	70
Refrigerant			R417A/R410
Working air temp range		℃	(-20℃)—45℃
compressor	Type		Panasonic
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Titanium heat exchanger
	Water flow	L/H	1800L/h
	Water pressure down	Kpa	30
	Pipe size(water connection)	DN	50
MODEL		Unit	MDY20D
Rated heating capacity		KW	9
Average heating input power		KW	1.84
Rated heating input current		A	7
Max outlet water temp		℃	35
COP			3.8
Power		V/Hz	220V/50
Noise		Db(a)	50
Dimension	W*D*H	mm	1140×360×540
Packing size	W*D*H	mm	1180*380*680
Unit weight		KG	75
Refrigerant			R417A/R410
Working air temp range		℃	(-20℃)—45℃
compressor	Type		Panasonic
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Titanium heat exchanger
	Water flow	L/H	3500L/h
	Water pressure down	Kpa	30
	Pipe size(water connection)	DN	50
MODEL		Unit	MDY30D
Rated heating capacity		KW	14
Average heating input power		KW	3
Rated heating input current		A	13/6
Max outlet water temp		℃	35
COP			4
Power		V/Hz	220V/380/50
Noise		Db(a)	55
Dimension	W*D*H	mm	1120*490*790mm
Packing size	W*D*H	mm	1200*520*870mm
Unit weight		KG	110
Refrigerant			R417A/R407C/R410A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Titanium heat exchanger
	Water flow	L/H	5500L/h
	Water pressure down	Kpa	40
	Pipe size(water connection)	DN	50
MODEL		Unit	MDY40D
Rated heating capacity		KW	16
Average heating input power		KW	4
Rated heating input current		A	18/9
Max outlet water temp		℃	35
COP			4.2
Power		V/Hz	380V/50
Noise		Db(a)	55
Dimension	W*D*H	mm	1120*490*1270
Packing size	W*D*H	mm	1200*520*1440
Unit weight		KG	160
Refrigerant			R417A/R407C/R410A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Titanium heat exchanger
	Water flow	L/H	6500L/h
	Water pressure down	Kpa	45
	Pipe size(water connection)	DN	50
MODEL		Unit	MDY50D
Rated heating capacity		KW	19
Average heating input power		KW	4.4
Rated heating input current		A	9
Max outlet water temp		C	35
COP			4.2
Power		V/Hz	380V/50
Noise		Db(a)	55
Dimension	W*D*H	mm	1120*490*1270
Packing size	W*D*H	mm	1200*520*1350
Unit weight		KG	160
Refrigerant			R417A/R407C/R410A
Working air temp range			(-20C)—45C
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Titanium heat exchanger
	Water flow	L/H	7500L/h
	Water pressure down	Kpa	45
	Pipe size(water connection)	DN	50
MODEL		Unit	MDY60D
Rated heating capacity		KW	26
Average heating input power		KW	6
Rated heating input current		A	12
Max outlet water temp		℃	35
COP			4.2
Power		V/Hz	380/50
Noise		Db(a)	60
Dimension	W*D*H	mm	1120*490*1270
Packing size	W*D*H	mm	1200*520*1350
Unit weight		KG	210
Refrigerant			R417A/R407C/R410A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Titanium heat exchanger
	Water flow	L/H	9000L/h
	Water pressure down	Kpa	48
	Pipe size(water connection)	DN	50
MODEL		Unit	MDY100D
Rated heating capacity		KW	42
Average heating input power		KW	9.2
Rated heating input current		A	18
Max outlet water temp		C	35
COP			4.2
Power		V/Hz	380V/50
Noise		Db(a)	60
Dimension	W*D*H	mm	1450×760×1060
Packing size	W*D*H	mm	1520*760*1190mm
Unit weight		KG	289
Refrigerant			R417A/R407C/R410A
Working air temp range			(-20C)—45C
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Titanium heat exchanger
	Water flow	L/H	15000L/h
	Water pressure down	Kpa	54
	Pipe size(water connection)	DN	63
MODEL		Unit	MDY150D
Rated heating capacity		KW	50
Rated Cooling capacity		KW	37
Average input power		KW	11
Rated input current		A	24
Max outlet water temp		C	38
COP			4.5
Power		V/Hz	380V/50
Noise		Db(a)	60
Dimension	W*D*H	mm	1450×760×1060
Packing size	W*D*H	mm	1520*760*1190mm
Unit weight		KG	320
Refrigerant			R417A/R407C/R410A
Working air temp range			(-20C)—45C
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Titanium heat exchanger
	Water flow	L/H	18000L/h
	Water pressure down	Kpa	54
	Pipe size(water connection)	DN	63
MODEL		Unit	MDY200D
Rated heating capacity		KW	84
Average heating input power		KW	19
Rated heating input current		A	35
Max outlet water temp		℃	35
COP			4.5
Power		V/Hz	380V/50
Noise		Db(a)	65
Dimension	W*D*H	mm	1990*980*2080
Packing size	W*D*H	mm	2080×1150×2130
Unit weight		KG	650
Refrigerant			R417A/R407C/R410A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Titanium heat exchanger
	Water flow	L/H	28000L/h
	Water pressure down	Kpa	60
	Pipe size(water connection)	DN	63
MODEL		Unit	MDY300D
Rated heating capacity		KW	100
Average heating input power		KW	25
Rated heating input current		A	45
Max outlet water temp		℃	35
COP			4.5
Power		V/Hz	380V/50
Noise		Db(a)	68
Dimension	W*D*H	mm	1990*980*2080
Packing size	W*D*H	mm	2080×1150×2130
Unit weight		KG	650
Refrigerant			R417A/R407C/R410A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Titanium heat exchanger
	Water flow	L/H	45000L/h
	Water pressure down	Kpa	60
	Pipe size(water connection)	DN	63





Packaging & Delivery

Packaging Details: export wooden packing

Delivery Time: 15-30 days





Our Services



1. After installation, our company will be responsible for problems caused by quality of production or raw material except the damageable spare parts of heat pump caused by incorrect man-made operation during the guarantee period.



2. Intelligent Controlling service system will be avoid the long distance of the after sale problem. Wherever are you, our engineer can be controlled your equipment, when some questions occur on the equipment. Just tell us what number will be shown on the screen, then the engineer will be solve the problem.



3. We accept OEM, ODM and customization.



4. 24*7 after sales service. You will get satisfied service.



5. We have More than 17years production and sales experience; Professional sales team.



• What is your advantage, comparing with other water heaters?

A: Avoiding electric water heater leakage, dry, high power consumption.



B: Avoiding the drawbacks of gas water heater, such as producing harmful gases, Fits and starts etc.

C: Energy efficient, safety and environmental protection, all-weather operation, easy to use.





​What details do you needs



A: Pool: Length, width, depth.



B: Ambient temperature.



C: Water input and output temperature.
