|Place of Origin:||Guangzhou China|
|Certification:||CE ISO CCC UKAS,ROHS|
|Minimum Order Quantity:||1 PCS|
|Packaging Details:||Plywooden case|
|Delivery Time:||15 days|
|Payment Terms:||T/T, WESTERN UNION|
|Color:||White||Materail:||Galvanized Steel Sheet|
|Contactor:||Fuji Brand||Copper Pipe Thick:||0.8-1 Mm|
|Compressor:||ZW Series ,With Crank Heating||Working Temperature:||-15--(45 )degree|
|Insulation:||Foam Pack Pipe And Stick On The Machine Innner||Defrosting:||Automaticlly|
air temp heat pump,
domestic air source heat pump

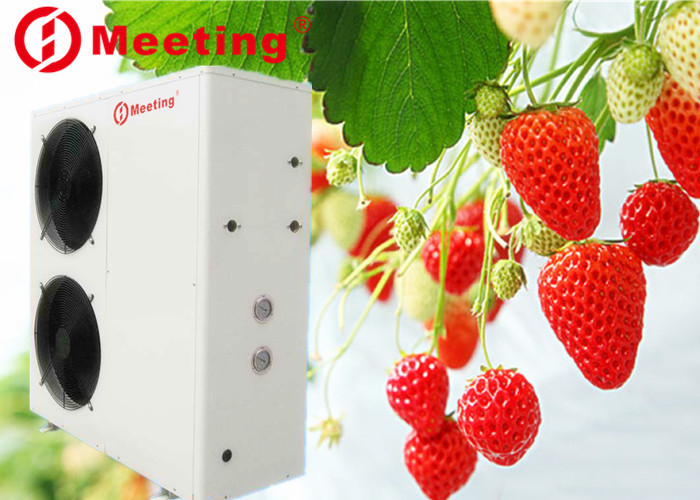

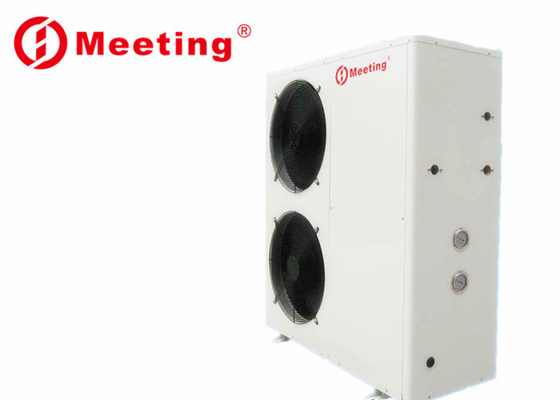

Meeting MD40D High-efficiency Energy-Saving and Environment-Friendly Heating Heat Pump for Strawberry Planting
|Rated heating capacity : 15 KW||Side outlet wind dimension W*D*H 1120 *490*1260 mm|
|Rated input power : 3.78 KW||Compressor : Copeland|
|Rated current : 15 A||Working air temp : -15℃— 45℃|
|Rated voitage : 220V/50HZ||Water flow : 5000 L/H|
|Super quiet Noise : ≤55Db||Pipe size : DN25 mm|
|The test conditions of above parameter : Environment dry bulb temperature 20 ℃, wet bulb temperature 15 ℃, the water temperature of 25 ℃, the water temperature of 20 ℃.|
- with Advanced DC inverter technology, it saves 40% energy than normal heat pump in practical operation.
- 5 modes to manage heating, cooling and DHW, fits your need all year round.
- with temperature compensation function, the water setting temperature adjusts automatically as the house's heat loss changes.
- Automatically variable fan speed in 3 grades to optimized heating efficiency.
- Can work with room thermostat.
- Can work with auxiliary heater.
- Split design with water system indoor, preventing water frozen problem.
- Aviation plug for wire connection between indoor unit and outdoor unit, simplifies installation and avoids mistakes.
- with controller interface, plate heat exchanger, circulation pump, flow switch, water pressure gauge in indoor unit.
- Allows absence of buffer tank.
1. High Efficiency With COP Value Pompes A Chaleur Pool Heater
2. Durable made of PVC & Titaniumtube
3. Easy operation
4. Quiet operation
5. Can heat when the temperature below 10℃
* High effciency, with a COP value up to 5.0 our heat pumps are very efficient
when transferring heat from the air to the swimming pool water.
You can save as much as 80% of cost compared to an electrical heater with long life.
* The heat exchanger is made of PVC& Titanium tube, which can withstand and prolong exposure to swimming pool water.
* Easy control and operation. Simply switch it on and set the desired pool water temperature.
* The system includes a micro-computer controller, allowing all operation parameters to be set.
Operation status can be displayed on the controller with LCD display
Packaging & Shipment
1> Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.

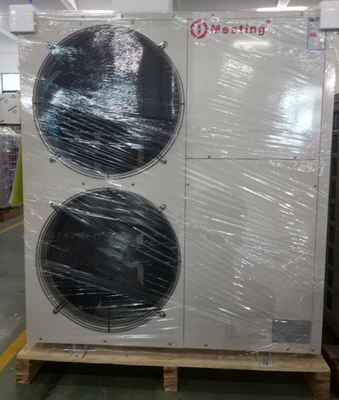

2> Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transporattion .
3> All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.
4> Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.
5> Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)
Packaging Details :Standard export packing -with plywoods case packages,OEM is available for Factory price heat pump water heaters
Delivery Time :15 work days after arrival of down payment
Internal porduct accessories
The world-famous Copeland Flexible Scroll Compressor has functions such as low wear resistance, long service life, over-current protection, phase loss protection, over-the-counter protection, strong liquid-impact resistance, and high and low voltage protection. Copeland compressor built-in pressure relief valve in the body can automatically relieve pressure when the high pressure is too high
2 Electronic expansion valve
The introduction of the latest Japanese technology in conjunction with the company's control system has led to the development of a unique electronic expansion valve control method and the use of digital technology control to control the working fluid to achieve the best flow velocity effect, thereby increasing the COP value.
3 Condenstion heat exchanger
In combination with the United States and the United States outside the threaded pipe technology, successfully created a "spring" spiral tube new structure condenser. Better heat transfer, faster heat transfer, and higher efficiency, minimize fouling, extend heat pump life and reduce maintenance
4 Electronic control system
With powerful engineering supporting control functions , it can control circulating water pump, make-up water , return water, water supply , electric heating , PID automatic defrosting, etc., making the control easier. According to the needs of different projects, it can set various parameters by itself and realize various water supply schemes . The entire system can be automated without special care.
5 Evaporation heat exchanger
The use of hydrophilic membrane aluminum foil, even after long-term use
The use of a hydrophilic layer also does not result in oxidative detachment. this
The evaporator has a special advantage: Excellent skis performan
A. Payment service
B. Technical service
1. We calculate the capacity and recommend the best models.
2. We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3. We supply the spare parts and technical support in and after the warranty time.
4. We supply the training course to your workers at our factory or site training if you need.
C. After-sales service
1. Technical support for your installation, operation and maintenance.
2. Standard warranty time: One years’warranty for heat pumps.
You can also pay for extended warranty or we can renegotiate the longer warranty period.
3. Spare parts and technical support at most economic prices after the warranty.
