Air Source Heat Pump Water Heater Connecting The Anti - Rust Warmer Central Radiator For Homes Heating Systems

Meeting Air Source Heat Pump Water Heater Connecting The Anti-Rust Warmer Central Radiator For Homes Heating Systems







Technology Specification





Features&Benefits



1. Easy installation with different water tanks



2. High efficiency with good performance



3. Famous brand compressor with R410a



4. Enlarged heat exchangers, high COP



5. Whisper quiet fan



6. Intelligent controller



7. Reverse cycle defrost with 4-way valve



8. Hydrophilic fin coil coating



9.Operation protection included



10. 100% factory tested

Advantages:
1.Generally cost less to operate than other types of conventional heating systems, save your electricity or gas bills.

2.Operate at a high efficiency with no flames, fumes, or flues; Water and electricity isolated.

3.With intelligent control systems which convenient and simple operation

4.Provide hot water no matter in cloudy day, snowy day or at night, unlike solar collectors which have to be facing the sun.

5.Transfer heat that’s already in the environment; Low CO2 emissions.

Exhibition show

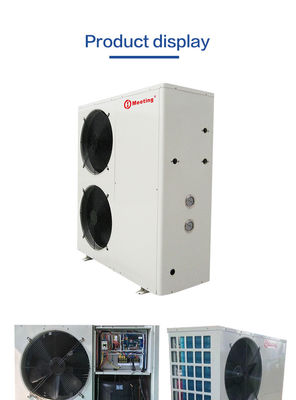

Internal porduct accessories



1 compressor:

The world-famous Copeland Flexible Scroll Compressor has functions such as low wear resistance,



long service life, over-current protection, phase loss protection, over-the-counter protection, strong liquid-impact resistance,



and high and low voltage protection. Copeland compressor built-in pressure relief valve in the body can



automatically relieve pressure when the high pressure is too high





2 Electronic expansion valve:

The introduction of the latest Japanese technology in conjunction with the company's control system has led



to the development of a unique electronic expansion valve control method and the use of digital technology



control to control the working fluid to achieve the best flow velocity effect, thereby increasing the COP value.





3 Condenstion heat exchanger:



In combination with the United States and the United States outside the threaded pipe technology,



successfully created a "spring" spiral tube new structure condenser. Better heat transfer, faster heat



transfer, and higher efficiency, minimize fouling, extend heat pump life and reduce maintenance





4 Electronic control system :



With powerful engineering supporting control functions , it can control circulating water pump, make-up



water , return water, water supply , electric heating , PID automatic defrosting, etc., making the control



easier. According to the needs of different projects, it can set various parameters by itself and realize



various water supply schemes . The entire system can be automated without special care.





5 Evaporation heat exchanger:

The use of hydrophilic membrane aluminum foil, even after long-term use

The use of a hydrophilic layer also does not result in oxidative detachment. this

The evaporator has a special advantage: Excellent skis performance

The more you can reduce the wind resistance, so that the condensate drains out quickly

outer.



Internally-threaded copper tube and corrugated aluminum foil structure
High evaporator efficiency.







 Payment service



1. T/T, 30% deposit, 70% balance.





After selling

1. We promise to offer free consulting call in 7~24 hours mode to solve the problems found in practice.

2. Products guarantee is 18~24 months from ex-factory date. Within 18months,if any components of your products damaged because of quality, we supply new replacement for free.

3. After the expiration of the quality assurance, we will continue to provide lifelong maintenance services, with just charging some cost price.





FAQ



Why us?



1. Timely Delivery, considerate sales after service



2. Many Years quality warranty,OEM service.



3. Top Craftmanship, All products 100% tested



4. Preferential freight by Famous shipping company



5. New Design,Very popular style products recommendation for your local market





Packaging & Shipment

1> Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.



2> Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transporattion .



3> All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.



4> Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.



5> Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)

Packaging Details :Standard export packing -with plywoods case packages,OEM is available for Factory price heat pump water heaters

Delivery Time :15 work days after arrival of down payment





Air source heat pump parameters tables

MODEL		Unit	MD10D
Rated heating capacity		KW	3.5
Rated Cooling capacity			1.8
Hot water supply		L/h	75
Average heating input power		KW	0.75
Rated heating input current		A	6
Rate outlet water temp		℃	55
COP			3.65
Power		V/Hz	220V/50
Noise		Db(a)	48
Dimension	W*D*H	mm	1140×360×540
Packing size	W*D*H	mm	1200*400*710
Unit weight		KG	75
Refrigerant			R417A
Working air temp range		℃	(-20℃)—45℃
compressor	Type		Panasonic
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	1000L/h
	Water pressure down	Kpa	30
	Pipe size	DN	20
	Max flat square meter	M2	29
MODEL		Unit	MD15D
Rated heating capacity		KW	5
Rated Cooling capacity			3
Hot water supply		L/h	100
Average heating input power		KW	1.25
Rated heating input current		A	6
Rate outlet water temp		℃	55
COP			3.65
Power		V/Hz	220V/50
Noise		Db(a)	48
Dimension	W*D*H	mm	1140×360×540
Packing size	W*D*H	mm	1200*400*710
Unit weight		KG	75
Refrigerant			R417A
Working air temp range		℃	(-20℃)—45℃
compressor	Type		Panasonic
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	1600L/h
	Water pressure down	Kpa	30
	Pipe size	DN	20
	Max flat square meter	M2	40
MODEL		Unit	MD20D
Rated heating capacity		KW	7
Rated Cooling capacity			5
Hot water supply		L/h	150
Average heating input power		KW	1.84
Rated heating input current		A	9
Max outlet water temp		℃	60
COP			3.8
Power		V/Hz	220V/50
Noise		Db(a)	50
Dimension	W*D*H	mm	1140×360×540
Packing size	W*D*H	mm	1200*400*710
Unit weight		KG	75
Refrigerant			R417A//R410
Working air temp range		℃	(-20℃)—45℃
compressor	Type		Panasonic
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	2000L/h
	Water pressure down	Kpa	30
	Pipe size	DN	20
	Max flat square meter	M2	55
MODEL		Unit	MD30D
Rated heating capacity		KW	12
Rated Cooling capacity			7
Hot water supply		L/h	260
Average heating input power		KW	3
Rated heating input current		A	13/6
Max outlet water temp		℃	60
COP			4
Power		V/Hz	220V/380/50
Noise		Db(a)	54
Dimension	W*D*H	mm	1120*490*710mm
Packing size	W*D*H	mm	1190*520*865mm
Unit weight		KG	108
Refrigerant			R417A/R407C/R404A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	3000L/h
	Water pressure down	Kpa	40
	Pipe size	DN	25
	Max flat square meter	M2	100
MODEL		Unit	MD40D
Rated heating capacity		KW	16
Rated Cooling capacity			10
Hot water supply		L/h	360
Average heating input power		KW	4
Rated heating input current		A	9
Max outlet water temp		℃	60
COP			4.2
Power		V/Hz	380V/50
Noise		Db(a)	55
Dimension	W*D*H	mm	1120*490*1270
Packing size	W*D*H	mm	1200*520*1425
Unit weight		KG	160
Refrigerant			R417A/R407C/R404A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	4000L/h
	Water pressure down	Kpa	45
	Pipe size	DN	25
	Max flat square meter	M2	125
MODEL		Unit	MD50D
Rated heating capacity		KW	18
Rated Cooling capacity			12
Hot water supply		L/h	400
Average heating input power		KW	4.4
Rated heating input current		A	9
Max outlet water temp		C	60
COP			4.2
Power		V/Hz	380V/50
Noise		Db(a)	55
Dimension	W*D*H	mm	1120*490*1270
Packing size	W*D*H	mm	1200*520*1425
Unit weight		KG	160
Refrigerant			R417A/R407C/R404A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	5000L/h
	Water pressure down	Kpa	45
	Pipe size	DN	25
	Max flat square meter	M2	150
MODEL		Unit	MD60D
Rated heating capacity		KW	21
Rated Cooling capacity			15
Hot water supply		L/h	520
Average heating input power		KW	5.68
Rated heating input current		A	12
Max outlet water temp		℃	60
COP			4.2
Power		V/Hz	380/50
Noise		Db(a)	60
Dimension	W*D*H	mm	1120*490*1270
Packing size	W*D*H	mm	1200*520*1425
Unit weight		KG	210
Refrigerant			R417A/R407C/R404A
Working air temp range			(-15℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	6000
	Water pressure down	Kpa	48
	Pipe size	DN	25
	Max flat square meter	M2	175
MODEL		Unit	MD100D
Rated heating capacity		KW	36
Rated Cooling capacity			24
Hot water supply		L/h	800
Average heating input power		KW	9.2
Rated heating input current		A	18
Max outlet water temp		℃	60
COP			4.2
Power		V/Hz	380V/50
Noise		Db(a)	60
Dimension	W*D*H	mm	1450×760×1060
Packing size	W*D*H	mm	1520*800*1230
Unit weight		KG	289
Refrigerant			R417A/R407C/R404A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	10000L/h
	Water pressure down	Kpa	54
	Pipe size	DN	32
	Max flat square meter	M2	300
MODEL		Unit	MD150D
Rated heating capacity		KW	42
Rated Cooling capacity			29
Hot water supply		L/h	1200
Average heating input power		KW	11
Rated heating input current		A	18
Max outlet water temp		℃	60
COP			4.2
Power		V/Hz	380V/50
Noise		Db(a)	60
Dimension	W*D*H	mm	1450×760×1060
Packing size	W*D*H	mm	1520*800*1230
Unit weight		KG	320
Refrigerant			R417A/R407C/R404A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	15000L/h
	Water pressure down	Kpa	54
	Pipe size	DN	32
	Max flat square meter	M2	350
MODEL		Unit	MD200D
Rated heating capacity		KW	72
Rated Cooling capacity			48
Hot water supply		L/h	1590
Average heating input power		KW	18.2
Rated heating input current		A	35
Max outlet water temp		℃	60
COP			4.5
Power		V/Hz	380V/50
Noise		Db(a)	65
Dimension	W*D*H	mm	2040×1100×2000
Packing size	W*D*H	mm	2080×1150×2130
Unit weight		KG	650
Refrigerant			R417A/R407C/R404A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	20000L/h
	Water pressure down	Kpa	60
	Pipe size	DN	50
	Max flat square meter	M2	600
MODEL		Unit	MD300D
Rated heating capacity		KW	88
Rated Cooling capacity			65
Hot water supply		L/h	24000
Average heating input power		KW	25
Rated heating input current		A	45
Max outlet water temp		℃	60
COP			4.5
Power		V/Hz	380V/50
Noise		Db(a)	68
Dimension	W*D*H	mm	2040×1100×2000
Packing size	W*D*H	mm	2080×1150×2130
Unit weight		KG	650
Refrigerant			R417A/R407C
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	30000L/h
	Water pressure down	Kpa	60
	Pipe size	DN	50
	Max flat square meter	M2	730
