5HP Air Source Heat Pump 18KW Heating Woking Temperature -20 - 45 Degree

5HP Air Source Heat Pump 18KW heating Woking temperature -20--45 degree



Technology Specification



Air source heat pump water heater is one of the most economical systems to heat water for family domestic use and commercial use. Using free renewable energy from the air, the heat pump is highly efficient with low cost. It can save energy up to 80% compared with traditional gas boiler or electric water heater.





Features&Benefits



Easy installation with different water tanks



High efficiency with good performance



Famous brand compressor with R410a



Enlarged heat exchangers, high COP



Whisper quiet fan



Intelligent controller



Reverse cycle defrost with 4-way valve



Hydrophilic fin coil coating



Operation protection included

100% factory tested







 MD50D air source heat pump parameters tables



MODEL		Unit	MD50D
Rated heating capacity		KW	18
Rated Cooling capacity			12
Hot water supply		L/h	400
Average heating input power		KW	4.4
Rated heating input current		A	9
Max outlet water temp		C	60
COP			4.2
Power		V/Hz	380V/50
Noise		Db(a)	55
Dimension	W*D*H	mm	1120*490*1270
Packing size	W*D*H	mm	1200*520*1425
Unit weight		KG	160
Refrigerant			R417A/R407C/R404A
Working air temp range			(-20℃)—45℃
compressor	Type		Copeland
Air source heat exchanger	Type		Finned heat exchange
	Fan Type		axial flow fan
Hot water side heat exchange	Type		Coil heat exchanger
	Water flow	L/H	5000L/h
	Water pressure down	Kpa	45
	Pipe size	DN	25
	Max flat spuare meter	M2	150





A. Payment service

1. T/T



2. L/C (for container order only)



B. Technical service

1. We calculate the capacity and recommend the best models.



2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.



3. We supply the spare parts and technical support in and after the warranty time.



4. We supply the training course to your workers at our factory if you need.



5. We can offer site training to your workers in your place which is negotiable.



C. After-sales service

1. Technical support for your installation, operation and maintenance.



2. Standard warranty time: One years’warranty for heat pumps

You can also pay for extended warranty or we can renegotiate the longer warranty period.



3. Spare parts and technical support at most economic prices after the warranty.



FAQ

Why us?

1. Timely Delivery, considerate sales after service



2. Many Years quality warranty,OEM service.



3. Top Craftmanship, All products 100% tested



4. Preferential freight by Famous shipping company



5. New Design,Very popular style products recommendation for your local market



Packaging & Shipment

1>Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.

2>Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transporattion .

3>All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.

4>Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.

5>Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)

Packaging Details :Standard export packing -with plywoods case packages,OEM is available for Factory price heat pump water heaters

Delivery Time :15 work days after arrival of down payment



ABOUT US

1). We were established in 2001.



2). We are a professional heat pump manufacturer, Located around Baiyun Air port



3). We are trading on Meeting Brand ,Meeting heat pump Well-know brand we operate in Europe market



4). Our company has been inspected and certificated by TUV and SGS.



5). We are the one of the first manufacturers whose heat pumps are with top COP gaining grants from Chinese government.



6). We passed ISO 9001 quality management system and ISO14000 environment protection system



7). Our testing laboratory can test heat pump up to 60KW heating capacity and create testing air temperature condition during -25DegC~45DegC,according to EN14511 standard.

8). Our leading products: Air to water heat pump , DC inverter heat pump, High water temperature heat pumps

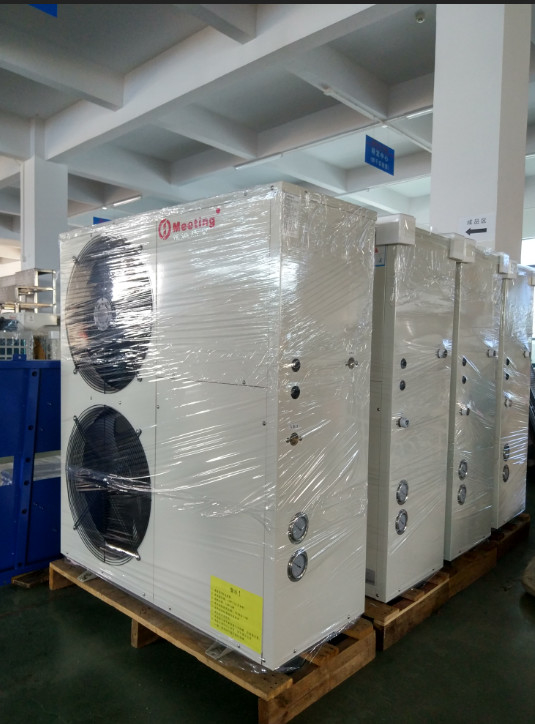

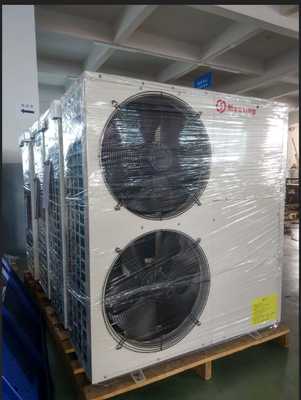

Product packing, plywooden case
