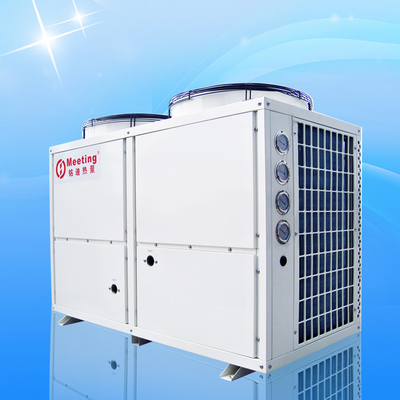

30P Air Source Heat Pump With Copeland Compressor / Safe Circuit Board

Air source heat pump with copland compressor / Galvanized steel sheet / high quality expansion / safe circuit board





ABOUT US



1). We were established in 2001.

2).We are a professional heat pump manufacturer,Located arround baiyun Air port

3). We are trading on Meeting Brand ,Meeting heat pump Well-know brand we operate in Europe market

4). Our company has been inspected and certificated by TUV and SGS.

5). We are the one of the first manufacturers whose heat pumps are with top COP gaining grants from Chinese government.

6). We pass ISO9001 quality management system and ISO14000 environment protection system

7). Our testing laboratory can test heat pump up to 60KW heating capacity and create testing air temperature condition during -25DegC~45DegC,according to EN14511 standard.

8). Our leading products : Air to water heat pump , DC inverter heat pump , High water temperature heat pumps , Monoblock house heating heat pumps ,Split heat pump , Super low noise heat pump

Heat pump dryer , Ground source heat pump , water to water heat pump , swimming pool heat pump





 Porduct Details



1. MODEL                                              MD300D

2. Rated heating capacity                     88KW

3. Rated Cooling capacity                      65KW

4. Hot water supply                               2400L / h

5. Average heating input power            25KW

6. Rated heating input current              45A

7. Rate outlet water temp                      80℃

8. COP                                                  4.5

9.  Refrigerant                                        R417A

10. Noise                                               68Db ( a )

11. Air source heat exchanger               Finned heat exchange

12. Power                                               380V/ 50HZ

13. Dimension                                        2040 ×1100 ×2000MM

14. Packing size                                     2080 * 1150 * 2310MM

15. Unit weight                                        650KG

16. Working air temp range                    (-20℃)—45

17. Compressor                                      Copeland

18. Use porject                                        dry room , hotel hot water

19 .Fan Type                                           axial flow fan

20 . Hot water side heat exchange

      ( 1 ) water folw                    30000L / H

      ( 2 ) water pressure down   60Kpa

      ( 3 )pipe size                        50Db

      ( 4 )Max spuare mater         730M ²





Packaging & Shipment



1> Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.

2> Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transporattion .

3> All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.

4> Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.

5> Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)

Packaging Details :Standard export packing -with plywoods case packages,OEM is available for Factory price heat pump water heaters

Delivery Time :15 work days after arrival of down payment



Service



A. Payment service

1. T/T

2. L/C (for container order only)



B. Technical service

1. We calculate the capacity and recommend the best models.

2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.

3. We supply the spare parts and technical support in and after the warranty time.

4. We supply the training course to your workers at our factory if you need.

5. We can offer site training to your workers in your place which is negotiable.



C. After-sales service

1. Technical support for your installation, operation and maintenance.

2. Standard warranty time: One years’warranty for heat pumps

You can also pay for extended warranty or we can renegotiate the longer warranty period.

3. Spare parts and technical support at most economic prices after the warranty.



FAQ



Q1. Can I have a sample order for Heat pump or Water tank?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-10days, mass production time depend on the products'quantity.

Q3.Do you offer guarantee for the products?

A: Yes, 12 months since the heat pump depart from the port of loading (Refer to the Bill of Lading).



Certificsate we have got :



1> ISO 9001, ISO 14000

2> Our company has been inspected and certificate by EMC

3> CE And EN14511, EN 14825-ERP for heat pump exported to europe

4> Energy label for all heat pump models sold to oversea market

Testing laboratory calibrated by CNAS



Mainly parts
