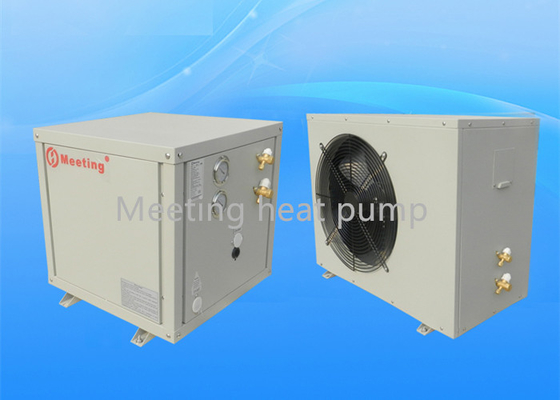

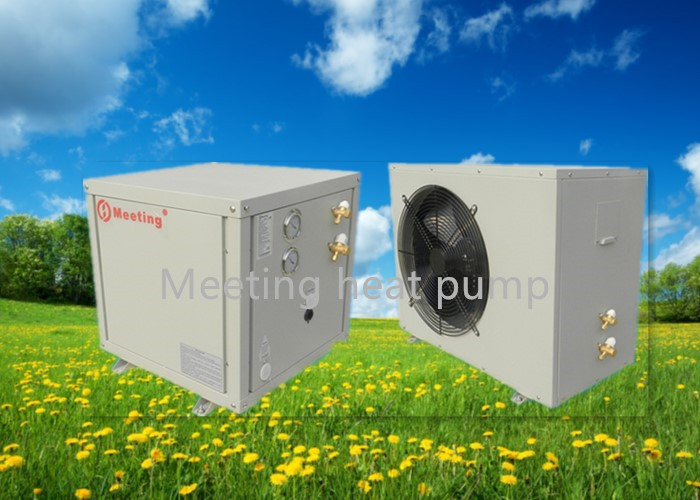

2.52~13KW Split Type DC Inverter Heat Pump Air Source Meeting MDIV30D Low Temp -35 Degree

18KW  air source inveter heat pump , High Efficient Wifi function support ,Safety controling , Top blowing



Product Parameters



Model: MDIV30D-FT	Rated voitage: 220V/380V
Heating Rated input power/current: 1.2～2.8/6	Noise: ≤54Db
Rated heating capicity (KW): 2.52～13	Rated outlet water temperature: 55～60/7～12
Rated cooling capicity (KW): 2.52～9	Compressor: Panasonic/Mitsubishi
Max input power/current(KW/A): 3/13	Working temperature: -35 ° C -40 °C
Rated water flow(L/H): 3000	Rated water flow(L / H): 3000
Evaporator: Finned heat exchange	Pipe size: DN25
Throttle element: electronic expansion valve	Condenser: Tube in tube Coil heat exchanger
Remarks: The test conditions of above parameter: dry bulb temperature: 20℃, wet bulb temperature: 17℃, Initial water temperature 15°C, outlet water temperature 55°C.





ABOUT US



1). We were established in 2001.



2).We are a professional heat pump manufacturer,Located arround baiyun Air port



3). We are trading on Meeting Brand ,Meeting heat pump Well-know brand we operate in Europe market



4). Our company has been inspected and certificated by TUV and SGS.



5). We are the one of the first manufacturers whose heat pumps are with top COP gaining grants from Chinese government.



6). We pass ISO9001 quality management system and ISO14000 environment protection system



7). Our testing laboratory can test heat pump up to 60KW heating capacity and create testing air temperature condition during -25DegC~45DegC,according to EN14511 standard.



9). Our leading products: Air to water heat pump , DC inverter heat pump, High water temperature heat pumps

Monoblock house heating heat pumps ,Split heat pump ,Super low noise heat pump

Heat pump dryer ,Ground source heat pump , water to water heat pump , swimming pool heat pump














 Inverter basic information

Meeting  inverter heat pump is the ideal solution for house heating and hot water so far , with advanced inverter technology , saving 40 % electricity than normal on / off heat pump in practical operation . The whole system is optimized with variable fan speed , while the temperature compensation function contributes to a more comfortable indoor environment . It can work with solar, boiler or electric heater according to practical condition of the heating system .


 Mian  Abvantage:

1 . With Advanced  inverter technology , it saves 40 % energy than normal heat pump in practical operation.

2 . Manage heating , cooling and hot water , fits your need all year round .

3 . With temperature compensation function , the water setting temperature adjusts automatically as the
house's heat loss changes

4. Automatically variable fan speed to optimize heating efficiency .

5. Can work with room thermostat or master controller .

6. Can work with auxiliary heater .

7. Split design with water system indoor, preventing water frozen problem.

8. Easy wire connection , simplifies installation and avoids mistakes .

9. With controller interface , plate heat exchanger , circulation pump , flow switch , water pressure gauge in indoor unit .

10. Allows absence of buffer tank.




B. Technical service



1. We calculate the capacity and recommend the best models.



2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.



3. We supply the spare parts and technical support in and after the warranty time.



4. We supply site training or training course to your workers at our factory if you need.







C. After-sales service



1. Technical support for your installation, operation and maintenance.



2. Standard warranty time: One years’warranty for heat pumps

You can also pay for extended warranty or we can renegotiate the longer warranty period.



3. Spare parts and technical support at most economic prices after the warranty.



Packaging & Shipment



1> Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.



2> Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transporattion .



3> All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.



4> Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.



5> Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model).



Packaging Details :Standard export packing -with plywoods case packages,OEM is available for Factory price heat pump water heaters



Delivery Time :15 work days after arrival of down payment







Certificsate we have got :

• ISO 9001, ISO 14000
• Our company has been inspected and certificate by EMC
• CE And EN14511, EN 14825-ERP for heat pump exported to europe
• Energy label for all heat pump models sold to oversea market
• Testing laboratory calibrated by CNAS
