19 Years Professional Heat Pump Manufacturer!

|
| Place of Origin: | Guangzhou China |
| Brand Name: | Meeting |
| Certification: | CE ISO CCC UKAS,ROHS |
| Model Number: | MD30D-ss |
| Minimum Order Quantity: | 5 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, WESTERN UNION |
| Supply Ability: | 800/MONTH |
| Material: | Galvanized Sheet | Copper Thick: | 0.8-1 Mm |
|---|---|---|---|
| Compressor: | With Oil Heater | Working Temperature: | -15--45 Degree |
| Insulation: | Foam Pack Pipe And Stick On The Machine Innner | Display: | LCD Figer Touch |
| Use: | Residential House | Rated Heating Capacity: | 12KW |
| Housing Material: | Stainless Steel | ||
| High Light: | air to air source heat pump,high temp heat pump |
||

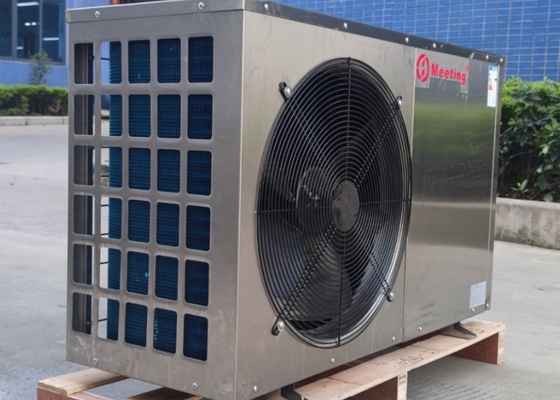

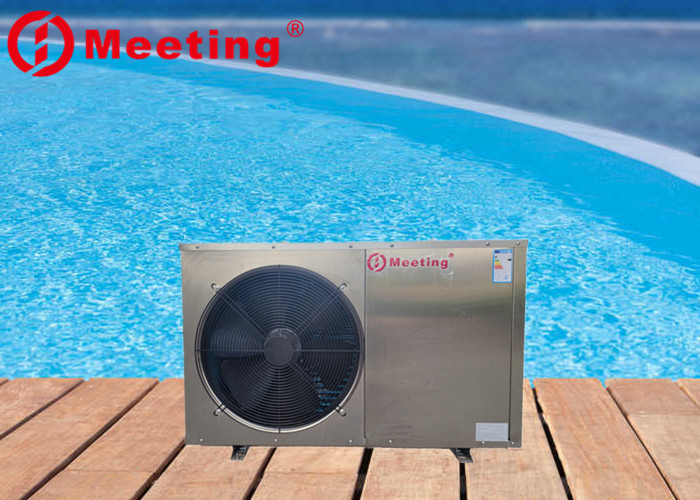

Meeting stainless steel shell swimming pool hot water heat pump air source pool heater hear pumps CE
Technology Specification
»Auxiliary electronic heater or solar coiler is on your option
» Fashionable design, compact structure, saving the place.
»Quiet, lower the noise when the unit is running
»Advance control panel. Timer function , automatic defrosting function, optional electrical heating, error messages showed for warning.
»It can be work in -15°C or -25°C low ambient temperature.
Hot water output temperature up to 60°C, for domestic hot water or heating.
auto-defrosting function included. And cooling is optional
A. Payment service
1. T/T
B. Technical service
1. We calculate the capacity and recommend the best models.
2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3. We supply the spare parts and technical support in and after the warranty time.
4. We supply the training course to your workers at our factory or site training if you need.
5. We welcome you to be our agent in your country.
FAQ
Why us?
1. Timely Delivery, considerate sales after service.
2. 1 Year heat pump warranty, unlimited period for online support.
--You can also pay for extended warranty or we can renegotiate the longer warranty period.
3. Top Craftmanship, All products 100% tested.
4. Preferential freight by Famous shipping company.
5. New Design,Very popular style products recommendation for your local market.
Packaging & Shipment
1> Delivery Time : Usually 15 working days after payment
2> Packaging Details :Standard export packing - plywood case with dusty-proof film inside,OEM is acceptable for Factory price.
3> All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.
4> Take video of the heat pump for buyer before package to 100% sure buyer get product same as order.
5>Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)
| MODEL | Unit | MD20D | |
| Rated heating capacity | KW | 7 | |
| Rated Cooling capacity | 5 | ||
| Hot water supply | L/h | 150 | |
| Average heating input power | KW | 1.84 | |
| Rated heating input current | A | 9 | |
| Max outlet water temp | ℃ | 60 | |
| COP | 3.8 | ||
| Power | V/Hz | 220V/50HZ | |
| Noise | Db(a) | 50 | |
| Dimension | W*D*H | mm | 1140×360×540 |
| Packing size | W*D*H | mm | 1200*400*710 |
| Unit weight | KG | 75 | |
| Refrigerant | R417A//R410 | ||
| Working air temp range | ℃ | (-15℃)—45℃ | |
| compressor | Type | Panasonic | |
| Air source heat exchanger | Type | Finned heat exchange | |
| Fan Type | axial flow fan | ||
| Hot water side heat exchange | Type | Coil heat exchanger | |
| Water flow | L/H | 2000L/h | |
| Water pressure down | Kpa | 30 | |
| Pipe size | DN | 20 | |
| Max flat square meter | M2 | 55 | |
| MODEL | Unit | MD30D | |
| Rated heating capacity | KW | 12 | |
| Rated Cooling capacity | 7 | ||
| Hot water supply | L/h | 260 | |
| Average heating input power | KW | 3 | |
| Rated heating input current | A | 13/6 | |
| Max outlet water temp | ℃ | 60 | |
| COP | 4 | ||
| Power | V/Hz | 220V/380V/50HZ | |
| Noise | Db(a) | 54 | |
| Dimension | W*D*H | mm | 1120*490*710mm |
| Packing size | W*D*H | mm | 1190*520*865mm |
| Unit weight | KG | 108 | |
| Refrigerant | R417A/R407C/R404A | ||
| Working air temp range | (-15℃)—45℃ | ||
| compressor | Type | Copeland | |
| Air source heat exchanger | Type | Finned heat exchange | |
| Fan Type | axial flow fan | ||
| Hot water side heat exchange | Type | Coil heat exchanger | |
| Water flow | L/H | 3000L/h | |
| Water pressure down | Kpa | 40 | |
| Pipe size | DN | 25 | |
| Max flat square meter | M2 | 100 | |
