5 Ton Ground Source Heat Pump Energy Efficient All In One For House Heating And Air Conditioning

China 5 Ton  Ground Source Heat Pump Energy Efficient All In One For House Heating And Air Conditioning supplier

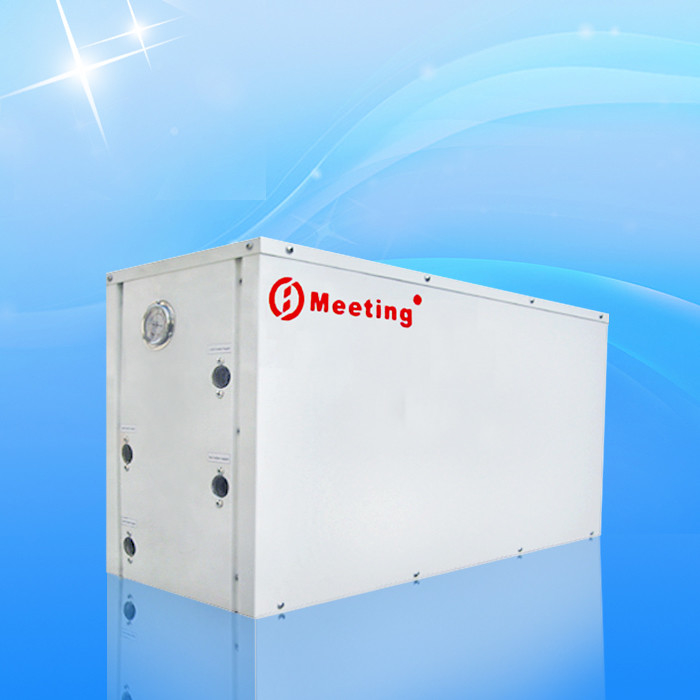

Large Image :  5 Ton Ground Source Heat Pump Energy Efficient All In One For House Heating And Air Conditioning

Product Details:

Place of Origin: Guangzhou China
Brand Name: Meeting
Certification: CE ISO CCC UKAS,ROHS
Model Number: MDS15D

Payment & Shipping Terms:

Minimum Order Quantity: 5 PCS
Price: Negotiation
Packaging Details: Plywooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C WESTERN UNION
Supply Ability: 800/MONTH
Contact Now
Detailed Product Description
Materail: Coated Matel Contactor: Fuji Brand
Copper Thick: 1 Mm Compressor: With Oil Heater
Display: LCD Finger Touch Control: Wifi Function Support

Efficient house heating new energy heat pump ground 5kw compressor Panasonic

Technology Specification

Porduct Details

MODEL Unit MDS15D
Rated heating capacity KW 5
Hot water supply L/h 100
Average heating input power KW 1.2
Rated heating input current A 6
Max outlet water temp 80
COP   4
Power V/Hz 220V/50
Noise Db(a) 50
Dimension W*D*H mm 657×557×765
Packing size W*D*H mm 737×637×915
Unit weight KG 75
Refrigerant   R134A
Working air temp range (-40℃)—45℃
compressor Type   Panasonic
water source heat exchanger Type   Plate heat exchange
Pipe size DN 25
Hot water side heat exchange Type   Coil heat exchanger
Water flow L/H 2000L/h
Water pressure down Kpa 30
Pipe size DN 25
Max house heating M2 40





Internal porduct accessories

1 compressor
The world-famous Copeland Flexible Scroll Compressor has functions such as low wear resistance, long service life, over-current protection, phase loss protection, over-the-counter protection, strong liquid-impact resistance, and high and low voltage protection. Copeland compressor built-in pressure relief valve in the body can automatically relieve pressure when the high pressure is too high



2 Electronic expansion valve
The introduction of the latest Japanese technology in conjunction with the company's control system has led to the development of a unique electronic expansion valve control method and the use of digital technology control to control the working fluid to achieve the best flow velocity effect, thereby increasing the COP value.



3 Condenstion heat exchanger

In combination with the United States and the United States outside the threaded pipe technology, successfully created a "spring" spiral tube new structure condenser. Better heat transfer, faster heat transfer, and higher efficiency, minimize fouling, extend heat pump life and reduce maintenance





4 Electronic control system

With powerful engineering supporting control functions , it can control circulating water pump, make-up water , return water, water supply , electric heating , PID automatic defrosting, etc., making the control easier. According to the needs of different projects, it can set various parameters by itself and realize various water supply schemes . The entire system can be automated without special care.



5.Evaporation heat exchanger
The use of high efficiency plate heat exchanger, high heat transfer efficiency, small footprint, and has a small heat dissipation characteristics, in the case of water quality is not very bad, the use of plate heat exchanger is the best choic





Feature:

1. Economical operation

Generally cost less to operate than other types of conventional heating systems, save your electricity or gas bills.

2. Safety

Operate at a high efficiency with no flames, fumes, or flues; Water and electricity isolated

3. Environmental friendly

Transfer heat that’s already in the environment; Low CO2 emissions.

4. Easy operation

With intelligent control systems which convenient and simple operation

5. Constant hot water supply

Provide hot water no matter in cloudy day, snowy day or at night, unlike solar collectors which have to be facing the sun.

6. Wide application

7. Heat pump water heater can be applied to sanitary hot water, house heating .





Ground source heat pump  working principle:

The difference between the water source heat pump and the air source is that the low-temperature and low-pressure liquid refrigerant exchanges heat with the water in the water/ground source pipeline in the evaporator, absorbs the heat Q1 in the water and evaporates into a low-temperature and low-pressure gaseous state, and then enters into a vaporized state. Compressor works through compressor W, is compressed into high temperature and high pressure gas, then enters condenser, exchanges heat with indoor water, transfers heat Q2 to indoor water, and the refrigerant condenses into high temperature and high pressure liquid, and then enters the expansion valve. With throttling, the refrigerant becomes a low-temperature and low-pressure liquid, and the throttling refrigerant enters the evaporator and undergoes heat exchange and evaporation, thereby realizing inverse carnot
The whole process, also Q2=Q1+W in this process





FAQ

Why us?

1. Timely Delivery, considerate sales after service

2. Many Years quality warranty,OEM service.

3. Top Craftmanship, All products 100% tested

4. Preferential freight by Famous shipping company

5. New Design,Very popular style products recommendation for your local market





Technical service

1. We calculate the capacity and recommend the best models.

2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.

3. We supply the spare parts and technical support in and after the warranty time.

4. We supply the training course to your workers at our factory if you need.

5. We can offer site training to your workers in your place which is negotiable.



 After-sales service

1. Technical support for your installation, operation and maintenance.

2. Standard warranty time: One years’warranty for heat pumps

You can also pay for extended warranty or we can renegotiate the longer warranty period.

3. Spare parts and technical support at most economic prices after the warranty.





 Packaging Details
 Carton and Wooden Package,
 Delivery Time
 15 working days after arrival of down payment
