|Place of Origin:||Guangzhou China|
|Certification:||CE ISO CCC UKAS,ROHS|
|Minimum Order Quantity:||5 PCS|
|Packaging Details:||Plywooden case|
|Delivery Time:||15 days|
|Payment Terms:||T/T, L/C WESTERN UNION|
|Materail:||Coated Matel||Contactor:||Fuji Brand|
|Copper Thick:||1 Mm||Compressor:||With Oil Heater|
|Display:||LCD Finger Touch||Control:||Wifi Function Support|
ground loop heat pump,
underground heat pump

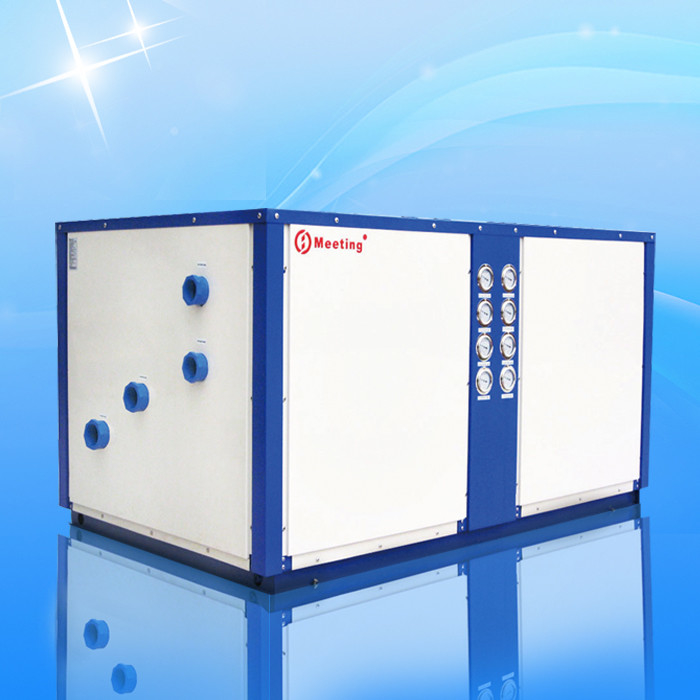

Geothermal source heat pump for cooling and heating average heating input power 25kw
1. Technology Specification
|Rated heating capacity||KW||100|
|Hot water supply||L/h||2400|
|Average heating input power||KW||25|
|Rated heating input current||A||45|
|Max outlet water temp||℃||80|
|Working air temp range||℃||(-40℃)—45℃|
|water source heat exchanger||Type||Tube heat exchange|
|Hot water side heat exchange||Type||Coil heat exchanger|
|Water pressure down||Kpa||60|
|Max house heating||M2||730|
Ground source heat pump working principle
|The difference between the water source heat pump and the air source is that the low-temperature and low-pressure liquid refrigerant exchanges heat with the water in the water/ground source pipeline in the evaporator, absorbs the heat Q1 in the water and evaporates into a low-temperature and low-pressure gaseous state, and then enters into a vaporized state. Compressor works through compressor W, is compressed into high temperature and high pressure gas, then enters condenser, exchanges heat with indoor water, transfers heat Q2 to indoor water, and the refrigerant condenses into high temperature and high pressure liquid, and then enters the expansion valve. With throttling, the refrigerant becomes a low-temperature and low-pressure liquid, and the throttling refrigerant enters the evaporator and undergoes heat exchange and evaporation, thereby realizing inverse carnot
The whole process, also Q2=Q1+W in this process
1. Economical operation
Generally cost less to operate than other types of conventional heating systems, save your electricity or gas bills.
Operate at a high efficiency with no flames, fumes, or flues; Water and electricity isolated
3. Environmental friendly
Transfer heat that’s already in the environment; Low CO2 emissions.
4. Easy operation
With intelligent control systems which convenient and simple operation
5. Constant hot water supply
Provide hot water no matter in cloudy day, snowy day or at night, unlike solar collectors which have to be facing the sun.
6. Wide application
7. Heat pump water heater can be applied to sanitary hot water, house heating .
Q1. Can I have a sample order for Heat pump or Water tank?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-10days, mass production time depend on the products'quantity.
Q3.Do you offer guarantee for the products?
A: Yes, 12 months since the heat pump depart from the port of loading (Refer to the Bill of Lading).
Certificsate we have got :
1. We promise to offer free consulting call in 7~24 hours mode to solve the problems found in practice.
2. Products guarantee is 18~24 months from ex-factory date. Within 18months,if any components of your products damaged because of quality, we supply new replacement for free.
3. After the expiration of the quality assurance, we will continue to provide lifelong maintenance services, with just charging some cost price.
Carton and Wooden Package,
15 working days after arrival of down payment
