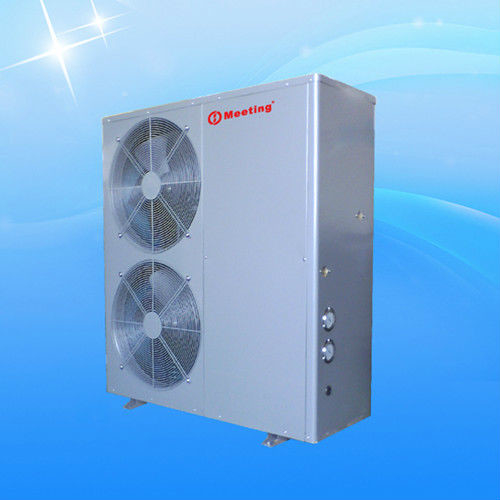

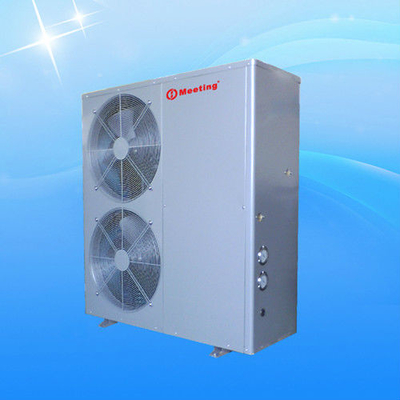

Stainless Steel Sheet Energy Efficient Heat Pumps 380 Provide Bathroom Live Hot Water

Stainless Steel Sheet Energy Efficient Heat Pumps 380 Provide Bathroom Live Hot Water

    • Stainless Steel Sheet Energy Efficient Heat Pumps 380 Provide Bathroom Live Hot Water
  • Stainless Steel Sheet Energy Efficient Heat Pumps 380 Provide Bathroom Live Hot Water

    Product Details:

    Place of Origin: Guangzhou China
    Brand Name: Meeting
    Certification: CE ISO CCC UKAS,ROHS
    Model Number: MD50D

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 PCS
    Price: Negotiation
    Packaging Details: Plywooden case
    Delivery Time: 15 days
    Payment Terms: T/T, L/C WESTERN UNION
    Supply Ability: 800/MONTH
    Contact Now
    Detailed Product Description
    Material: Galvanized Sheet Contactor: Fuji Brand
    Copper Thick: 1 Mm Compressor: With Oil Heater
    Working Temperature: -20--45 Degree Insulation: Foam Pack Pipe And Stick On The Machine Innner
    Display: LCD Figer Touch Control: Wifi Function Support
    High Light:

    high temperature air source heat pump

    ,

    swimming pool water heater heat pump

    Stainless steel sheet 380 provide bathroom live hot water bringing a comfortable environment



    Technology Specification





    Feature:

    1. Economical operation

    Generally cost less to operate than other types of conventional heating systems, save your electricity or gas bills.

    2. Safety

    Operate at a high efficiency with no flames, fumes, or flues; Water and electricity isolated

    3. Environmental friendly

    Transfer heat that’s already in the environment; Low CO2 emissions.

    4. Easy operation

    With intelligent control systems which convenient and simple operation

    5. Constant hot water supply

    Provide hot water no matter in cloudy day, snowy day or at night, unlike solar collectors which have to be facing the sun.

    6. Wide application

    7. Heat pump water heater can be applied to sanitary hot water, house heating .



    Advantage

    1.Adopt world famous brand compressor.
    2.High purity refrigerant: R410a/R407C, to make sure high COP.
    3.Optimized system design: R410a/R407C system with accurate capillary tube or electronic expansion valve, achieving stable operation and high COP in wide ambient temperature range.
    4.Big heat exchangers: big hydrophilic fin-tube heat exchanger, big titanium coil heat exchanger, (maybe the biggest one in China), to make sure high COP in wide ambient temperature range.
    5.Big and strong case: allowing built-in big heat exchangers, and reducing vibration and noise.
    6.Advanced control: the quick-mind microchip LCD controller (Carel controller is optional) provides extremely convenient control on the heat pump.
    7.Comprehensive protection: the heat pump is protected fully, including water flow, water temperature, compressor pressure and temperature, temperature for heat exchanger, and anti-freezing for heat exchanger and so on.
    8.Quiet: using the high-efficiency, low noise rotary or scroll compressor, low noise fan.



    A. Payment service

    1. T/T

    2. L/C (for container order only)



    B. Technical service

    1. We calculate the capacity and recommend the best models.

    2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.

    3. We supply the spare parts and technical support in and after the warranty time.

    4. We supply the training course to your workers at our factory if you need.

    5. We can offer site training to your workers in your place which is negotiable.



    C. After-sales service

    1. Technical support for your installation, operation and maintenance.

    2. Standard warranty time: One years’warranty for heat pumps

    You can also pay for extended warranty or we can renegotiate the longer warranty period.

    3. Spare parts and technical support at most economic prices after the warranty.



    FAQ

    Why us?

    1.Timely Delivery, considerate sales after service

    2.Many Years quality warranty,OEM service.

    3.Top Craftmanship, All products 100% tested

    4.Preferential freight by Famous shipping company

    5.New Design,Very popular style products recommendation for your local market



    Packaging & Shipment

    1>Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.

    2>Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transporattion .

    3>All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.

    4>Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.

    5>Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)

    Packaging Details :Standard export packing -with plywoods case packages,OEM is available for Factory price heat pump water heaters

    Delivery Time :15 work days after arrival of down payment



    ABOUT AS

    1). We were established in 2001.

    2).We are a professional heat pump manufacturer,Located arround baiyun Air port

    3). We are trading on Meeting Brand ,Meeting heat pump Well-know brand we operate in Europe market

    4). Our company has been inspected and certificated by TUV and SGS.

    5). We are the one of the first manufacturers whose heat pumps are with top COP gaining grants from Chinese government.

    6). We pass ISO9001 quality management system and ISO14000 environment protection system

    7). Our testing laboratory can test heat pump up to 60KW heating capacity and create testing air temperature condition during -25DegC~45DegC,according to EN14511 standard.

    9). Our leading products: Air to water heat pump , DC inverter heat pump, High water temperature heat pumps

    Monoblock house heating heat pumps ,Split heat pump ,Super low noise heat pump

    Heat pump dryer ,Ground source heat pump , water to water heat pump , swimming pool heat pump









    MODEL Unit MD10D
    Rated heating capacity KW 3.5
    Rated Cooling capacity   1.8
    Hot water supply L/h 75
    Average heating input power KW 0.75
    Rated heating input current A 6
    Rate outlet water temp 55
    COP   3.65
    Power V/Hz 220V/50
    Noise Db(a) 48
    Dimension W*D*H mm 1140×360×540
    Packing size W*D*H mm 1200*400*710
    Unit weight KG 75
    Refrigerant   R417A
    Working air temp range (-20℃)—45℃
    compressor Type   Panasonic
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 1000L/h
    Water pressure down Kpa 30
    Pipe size DN 20
    Max flat square meter M2 29
    MODEL Unit MD15D
    Rated heating capacity KW 5
    Rated Cooling capacity   3
    Hot water supply L/h 100
    Average heating input power KW 1.25
    Rated heating input current A 6
    Rate outlet water temp 55
    COP   3.65
    Power V/Hz 220V/50
    Noise Db(a) 48
    Dimension W*D*H mm 1140×360×540
    Packing size W*D*H mm 1200*400*710
    Unit weight KG 75
    Refrigerant   R417A
    Working air temp range (-20℃)—45℃
    compressor Type   Panasonic
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 1600L/h
    Water pressure down Kpa 30
    Pipe size DN 20
    Max flat square meter M2 40
    MODEL Unit MD20D
    Rated heating capacity KW 7
    Rated Cooling capacity   5
    Hot water supply L/h 150
    Average heating input power KW 1.84
    Rated heating input current A 9
    Max outlet water temp 60
    COP   3.8
    Power V/Hz 220V/50
    Noise Db(a) 50
    Dimension W*D*H mm 1140×360×540
    Packing size W*D*H mm 1200*400*710
    Unit weight KG 75
    Refrigerant   R417A//R410
    Working air temp range (-20℃)—45℃
    compressor Type   Panasonic
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 2000L/h
    Water pressure down Kpa 30
    Pipe size DN 20
    Max flat square meter M2 55
    MODEL Unit MD30D
    Rated heating capacity KW 12
    Rated Cooling capacity   7
    Hot water supply L/h 260
    Average heating input power KW 3
    Rated heating input current A 13/6
    Max outlet water temp 60
    COP   4
    Power V/Hz 220V/380/50
    Noise Db(a) 54
    Dimension W*D*H mm 1120*490*710mm
    Packing size W*D*H mm 1190*520*865mm
    Unit weight KG 108
    Refrigerant   R417A/R407C/R404A
    Working air temp range   (-20℃)—45℃
    compressor Type   Copeland
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 3000L/h
    Water pressure down Kpa 40
    Pipe size DN 25
    Max flat square meter M2 100
    MODEL Unit MD40D
    Rated heating capacity KW 16
    Rated Cooling capacity   10
    Hot water supply L/h 360
    Average heating input power KW 4
    Rated heating input current A 9
    Max outlet water temp 60
    COP   4.2
    Power V/Hz 380V/50
    Noise Db(a) 55
    Dimension W*D*H mm 1120*490*1270
    Packing size W*D*H mm 1200*520*1425
    Unit weight KG 160
    Refrigerant   R417A/R407C/R404A
    Working air temp range   (-20℃)—45℃
    compressor Type   Copeland
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 4000L/h
    Water pressure down Kpa 45
    Pipe size DN 25
    Max flat square meter M2 125
    MODEL Unit MD50D
    Rated heating capacity KW 18
    Rated Cooling capacity   12
    Hot water supply L/h 400
    Average heating input power KW 4.4
    Rated heating input current A 9
    Max outlet water temp C 60
    COP   4.2
    Power V/Hz 380V/50
    Noise Db(a) 55
    Dimension W*D*H mm 1120*490*1270
    Packing size W*D*H mm 1200*520*1425
    Unit weight KG 160
    Refrigerant   R417A/R407C/R404A
    Working air temp range   (-20℃)—45℃
    compressor Type   Copeland
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 5000L/h
    Water pressure down Kpa 45
    Pipe size DN 25
    Max flat square meter M2 150
    MODEL Unit MD60D
    Rated heating capacity KW 21
    Rated Cooling capacity   15
    Hot water supply L/h 520
    Average heating input power KW 5.68
    Rated heating input current A 12
    Max outlet water temp 60
    COP   4.2
    Power V/Hz 380/50
    Noise Db(a) 60
    Dimension W*D*H mm 1120*490*1270
    Packing size W*D*H mm 1200*520*1425
    Unit weight KG 210
    Refrigerant   R417A/R407C/R404A
    Working air temp range   (-20℃)—45℃
    compressor Type   Copeland
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 6000
    Water pressure down Kpa 48
    Pipe size DN 25
    Max flat square meter M2 175
    MODEL Unit MD100D
    Rated heating capacity KW 36
    Rated Cooling capacity   24
    Hot water supply L/h 800
    Average heating input power KW 9.2
    Rated heating input current A 18
    Max outlet water temp 60
    COP   4.2
    Power V/Hz 380V/50
    Noise Db(a) 60
    Dimension W*D*H mm 1450×760×1060
    Packing size W*D*H mm 1520*800*1230
    Unit weight KG 289
    Refrigerant   R417A/R407C/R404A
    Working air temp range   (-20℃)—45℃
    compressor Type   Copeland
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 10000L/h
    Water pressure down Kpa 54
    Pipe size DN 32
    Max flat square meter M2 300
    MODEL Unit MD150D
    Rated heating capacity KW 42
    Rated Cooling capacity   29
    Hot water supply L/h 1200
    Average heating input power KW 11
    Rated heating input current A 18
    Max outlet water temp 60
    COP   4.2
    Power V/Hz 380V/50
    Noise Db(a) 60
    Dimension W*D*H mm 1450×760×1060
    Packing size W*D*H mm 1520*800*1230
    Unit weight KG 320
    Refrigerant   R417A/R407C/R404A
    Working air temp range   (-20℃)—45℃
    compressor Type   Copeland
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 15000L/h
    Water pressure down Kpa 54
    Pipe size DN 32
    Max flat square meter M2 350
    MODEL Unit MD200D
    Rated heating capacity KW 72
    Rated Cooling capacity   48
    Hot water supply L/h 1590
    Average heating input power KW 18.2
    Rated heating input current A 35
    Max outlet water temp 60
    COP   4.5
    Power V/Hz 380V/50
    Noise Db(a) 65
    Dimension W*D*H mm 2040×1100×2000
    Packing size W*D*H mm 2080×1150×2130
    Unit weight KG 650
    Refrigerant   R417A/R407C/R404A
    Working air temp range   (-20℃)—45℃
    compressor Type   Copeland
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 20000L/h
    Water pressure down Kpa 60
    Pipe size DN 50
    Max flat square meter M2 600
    MODEL Unit MD300D
    Rated heating capacity KW 88
    Rated Cooling capacity   65
    Hot water supply L/h 24000
    Average heating input power KW 25
    Rated heating input current A 45
    Max outlet water temp 60
    COP   4.5
    Power V/Hz 380V/50
    Noise Db(a) 68
    Dimension W*D*H mm 2040×1100×2000
    Packing size W*D*H mm 2080×1150×2130
    Unit weight KG 650
    Refrigerant   R417A/R407C
    Working air temp range   (-20℃)—45℃
    compressor Type   Copeland
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 30000L/h
    Water pressure down Kpa 60
    Pipe size DN 50
    Max flat square meter M2 730








    Air to water source hat pump working principle diagarm



    Stainless Steel Sheet Energy Efficient Heat Pumps 380 Provide Bathroom Live Hot Water 0





    Main part diagarm



    1. compressor



    Stainless Steel Sheet Energy Efficient Heat Pumps 380 Provide Bathroom Live Hot Water 1

    Stainless Steel Sheet Energy Efficient Heat Pumps 380 Provide Bathroom Live Hot Water 2



    2. expansion



    Stainless Steel Sheet Energy Efficient Heat Pumps 380 Provide Bathroom Live Hot Water 3

    Stainless Steel Sheet Energy Efficient Heat Pumps 380 Provide Bathroom Live Hot Water 4



    ABOUT US

    1).We were established in 2001.

    2).We are a professional heat pump manufacturer, Located around Baiyun Air port

    3). We are trading on Meeting Brand ,Meeting heat pump Well-know brand we operate in Europe market

    4). Our company has been inspected and certificated by TUV and SGS.

    5). We are the one of the first manufacturers whose heat pumps are with top COP gaining grants from Chinese government.

    6).We passed ISO 9001 quality management system and ISO14000 environment protection system

    7). Our testing laboratory can test heat pump up to 60KW heating capacity and create testing air temperature condition during -25DegC~45DegC,according to EN14511 standard.

    9). Our leading products: Air to water heat pump , DC inverter heat pump, High water temperature heat pumps





    Contact Details
    Guangzhou Jin Lun Electric Equipment Co.,Ltd

    Contact Person: Ms. Alinna

    Tel: +86 13922152741

    Fax: 86-20

    Send your inquiry directly to us (0 / 3000)

    Other Products
