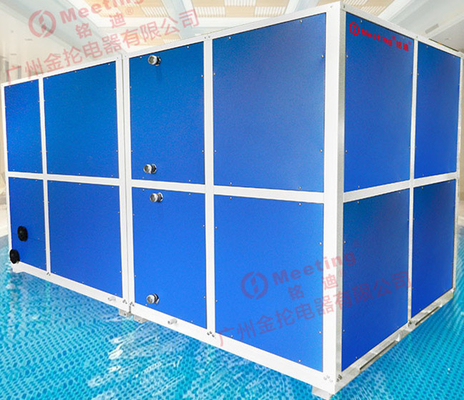

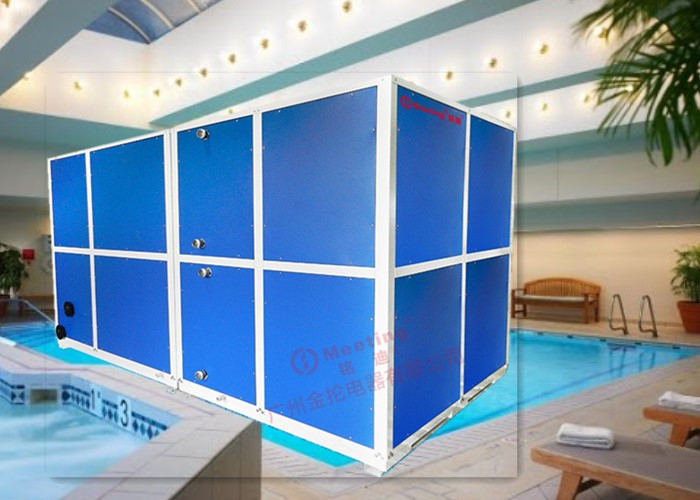

Meeting Indoor Swimming Pool Heat Pump For Spa Sauna Pool Heater , Dehumidity & Fresh Air

Meeting Indoor Swimming Pool Heat Pump For Spa Sauna Pool Heater , Dehumidity & Fresh Air

Meeting Indoor Swimming Pool Heat Pump For Spa Sauna Pool Heater , Dehumidity & Fresh Air
Meeting Indoor Swimming Pool Heat Pump For Spa Sauna Pool Heater , Dehumidity & Fresh Air

Product Details:

Place of Origin: Guangzhou China
Brand Name: Meeting
Certification: CE ISO CCC UKAS,ROHS
Model Number: MDY200D-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Plywooden case
Delivery Time: 15 days
Payment Terms: T/T, WESTERN UNION
Supply Ability: 800/MONTH
Contact Now
Detailed Product Description
Materail: Galvanized Sheet Contactor: Fuji Brand
Copper Thick: 0.8-1 Mm Compressor: With Oil Heater
Installation: Wall Mounted/Freestanding Use: Swimming Pool, Spa, Sauna
Color: White And Blue Rate Powe Input:: 100KW
Refrigerant: R417A/R407C/R410A/R32 Interface Size: 75 Flange Mm
High Light:

electric heat pump for inground pool

,

inground pool heat pump

Meeting Indoor Swimming Pool Heat Pump For Spa Sauna Pool Heater, Dehumidity & Fresh Air





Three in one pool heat pump, 6 functions:



1. Dehumidity



2. Fresh air



3. Constant temperature



4. Space heating & cooling



5. Initial temperature rise



6. Bathing







Meeting Indoor Swimming Pool Heat Pump For Spa Sauna Pool Heater , Dehumidity & Fresh Air 0





Parameters and Installation



Rated voltage: 380V Rated water temperature: 28 ° C
Rated frequency: 50Hz Maximum water temperature: 38 ° C
Rated current: 55A Interface size DN: 75 flange mm
Rated pressure: 0.4Mpa Compression power: 18KW
Water flow: 20000L/H Fan power: 8KW
Noise: 60Db Fresh air motor: 0.32KW
Total input power: 26.32KW Dehumidification capacity: 72L/H
Heating capacity: 100KW Air blower air volume: 8437~13617m3
Cooling capacity: 75KW Blower full pressure: 805~868Pa
Blower voltage: 380V Fan static pressure: 744~708Pa
New fan voltage: 380V Fresh air volume: 1500~3000m3
New fan full pressure: 266~245Pa New fan static pressure: 219~145Pa

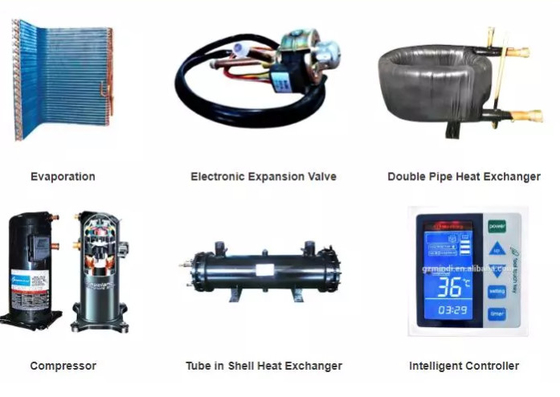

Throttling element: thermal valve Condenser: pure titanium tube heat exchanger or naval copper
Evaporator: High-efficiency internally threaded tube is connected with hydrophilic aluminum fins
External condenser: air-cooled (water-cooled can be customized)
Control system: with multiple parameter setting and query functions, multiple fault protection and alarm functions

Size and Packing:

Machine size (length * width * height): 4000 * 2260 * 2160mm
Package size (length * width * height): 4300 * 2450 * 2260mm
Air outlet size (length * width * height): 545 * 430 (two) mm
Exhaust port size (length * width * height): 300 * 196mm
New air outlet size (length * width * height): 300 * 196mm
Return air outlet size (length * width * height): 600 * 1020mm





Product discrition:

Heat pump used the heat from the air -20℃ below the cold coal recovery after compressed into a high temperature and high pressure refrigerant, it needs to be heated by heat transfer of water or other medium, make the heat efficiency of 400-500%.




A. Payment service



1. T/T, 30% deposit, 70% balance before shipment.





B. Technical service



1. We calculate the capacity and recommend the best models.



2. We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.



3. We supply the spare parts and technical support in and after the warranty time.



4. We supply the training course to your workers at our factory if you need, we can also offer site training.



5. We welcome you to be our partner.







C. After-sales service



1. Technical support for your installation, operation and maintenance.



2. Standard warranty time: One years’warranty for heat pumps



You can also pay for extended warranty or we can renegotiate the longer warranty period.



3. Spare parts and technical support at most economic prices after the warranty.





FAQ



Q1. Can I have a sample order for Heat pump or Water tank?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: Sample needs 3-10 days, mass production time depend on the products' quantity.



Q3.Do you offer guarantee for the products?

A: Yes, 14 month since the heat pump left our factory.





Certificate we have got :



1> ISO 9001, ISO 14000
2> Our company has been inspected and certificate by EMC
3> CE And EN14511, EN 14825-ERP for heat pump exported to Europe
4> Energy label for all heat pump models sold to over sea market
5> Testing laboratory calibrated by CNAS



Meeting Indoor Swimming Pool Heat Pump For Spa Sauna Pool Heater , Dehumidity & Fresh Air 1



Our leading products



Air to water heat pump, Water chiller, Inverter heat pump, High water temperature heat pump.



Mono block house heating heat pump, Split heat pump, Super low noise heat pump.



Heat pump dryer, Ground source heat pump, water to water heat pump, swimming pool heat pump.
