Home ProductsElectric Air Source Heat Pump

Commercial Air Source Heat Pump, R417A Refrigerent Space Heating

Commercial Air Source Heat Pump, R417A Refrigerent Space Heating

    • Commercial Air Source Heat Pump, R417A Refrigerent Space Heating
    • Commercial Air Source Heat Pump, R417A Refrigerent Space Heating
  • Commercial Air Source Heat Pump, R417A Refrigerent Space Heating

    Product Details:

    Place of Origin: Guangzhou China
    Brand Name: Meeting
    Certification: CE ISO CCC UKAS,ROHS
    Model Number: MD60D

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 PCS
    Price: Negotiation
    Packaging Details: Plywooden case
    Delivery Time: 15 days
    Payment Terms: T/T, L/C WESTERN UNION
    Supply Ability: 800/MONTH
    Contact Now
    Detailed Product Description
    Materail: Coated Matel Contactor: Circuit Controlling System
    Copper Thick: 1 Mm Compressor: Copeland
    Exchanger: Plate Heat Exchanger Electronic: Electronic Expansion Valve
    Power: 380V/50Hz Refrigerent: R417A/R407C/R404A
    Max Outlet Water Temp: 60C Use: Space Heating, Hot Water Solutions
    Color: White Place Of Origin: Guanzhou
    Housing Material:: Stainless Steel
    High Light:

    indoor air source heat pump


    domestic air source heat pump

    Commercial swimming pool heat pump air to water air source heat


    Commercial Swimming Pool Heat Pump Air To Water Air Source Heat R417A Refrigerent


    Air source heat pump ,Eenrgy saving , heating and cooling system , Adopt world famous Copeland







    Air Source Heat Pump three way valve System generally can be provided as the following three functions:


    1.Air-conditioning cooling in summer. 2. Heating in winter. 3. Domestic hot water provided.


    Air Source Heal Pump Three way valve Units works with fan coil, floor heating residential and domestic hot water supply system. It could take the

    advantage and efficiency of heat pump at the best price and really reach multiple-uses, safety, energy saving and comfortable effect.



    Plywood case


    Commercial Air Source Heat Pump, R417A Refrigerent Space Heating 0

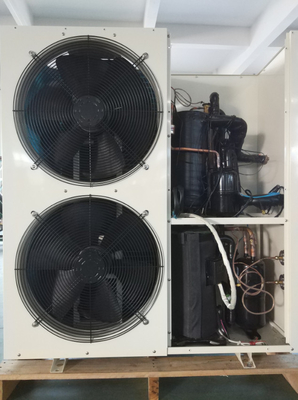

    Copeland comperssor


    Commercial Air Source Heat Pump, R417A Refrigerent Space Heating 1



    Packaging & Shipment


    1>Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.


    2>Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transporattion .


    3>All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.


    4>Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.


    5>Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)

    Packaging Details :Standard export packing -with plywoods case packages,OEM is available for Factory price heat pump water heaters


    Delivery Time :15 work days after arrival of down payment


    B. Technical service


    1. We calculate the capacity and recommend the best models.


    2. We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.


    3. We supply the spare parts and technical support in and after the warranty time.


    4. We supply the training course to your workers at our factory if you need.


    5. We can offer site training to your workers in your place which is negotiable.


    C. After-sales service

    1. Technical support for your installation, operation and maintenance.


    2. Standard warranty time: One years’warranty for heat pumps

    You can also pay for extended warranty or we can renegotiate the longer warranty period.

    1. Spare parts and technical support at most economic prices after the warranty.




    Q1. Can I have a sample order for Heat pump or Water tank?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q2. What about the lead time?

    A: Sample needs 3-10days, mass production time depend on the products' quantity.


    Q3.Do you offer guarantee for the products?

    A: Yes, 12 months since the heat pump depart from the port of loading (Refer to the Bill of Lading).


    Certificate we have got :


    1> ISO 9001, ISO 14000


    2> Our company has been inspected and certificate by EMC


    3> CE And EN14511, EN 14825-ERP for heat pump exported to Europe


    4> Energy label for all heat pump models sold to over sea marke


    5> Testing laboratory calibrated by CNAS



    Product details parameters


    Rated heating capacity KW 21
    Rated Cooling capacity   15
    Hot water supply L/h 520
    Average heating input power KW 5.68
    Rated heating input current A 12
    Max outlet water temp 60
    Power V/Hz 380/50
    Noise Db(a) 60
    Dimension W*D*H mm 1120*490*1270
    Packing size W*D*H mm 1200*520*1425
    Unit weight KG 210
    Refrigerant   R417A/R407C/R404A
    Working air temp range   (-20℃)—45℃
    compressor Type   Copeland
    Air source heat exchanger Type   Finned heat exchange
    Fan Type   axial flow fan
    Hot water side heat exchange Type   Coil heat exchanger
    Water flow L/H 6000
    Water pressure down Kpa 48
    Pipe size DN 25
    Max flat spuare meter M2 175






    1. Complying with ISO standard. Quality Ensured.


    2. Complete Inspection for each unit before out of factory, covering water system and electricity detection and testing, ensuring 100% right product before shipment.


    3. Strict quality control during production. We have liquid soap detection, halogen detection, electrical detection and water-soaking detection during production to avoid gas leakage and electrical problems.


    4. Full inspection on bigger parts such as compressors, condensers, evaporators, expansion valves, flow switches, controllers etc. Selection inspection for small parts such as sensors, pressure switches etc.


    5. Well noise control by using mute cotton for casing plates and soft rubber feet for floating compressors, some of the models use compressor isolation shields.


    6. Well insulated with insulated cotton for every pipe and parts, include compressor, dryer filter and each pipes.


    7. We have passed TUV and SGS inspections. We have CE, Ro HS, IEC, CCC, CB certificates for most of our products. Some of our products have en14511 test, en14825 test.

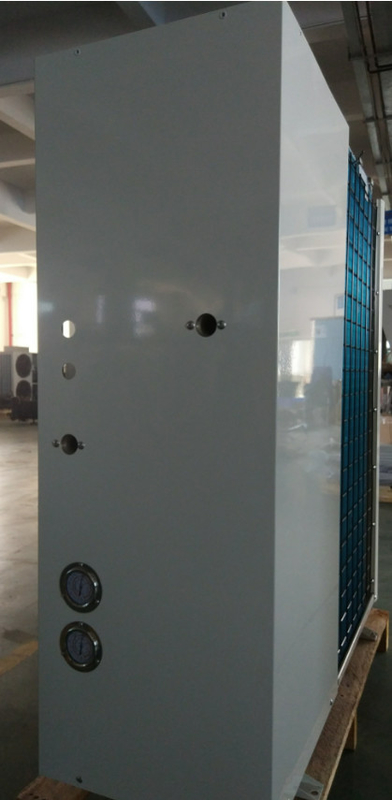

    Three way valve


    Commercial Air Source Heat Pump, R417A Refrigerent Space Heating 2
