380V / 50HZ EVI Heat Pump Air To - Water With Fan Copeland Compressor

380V / 50HZ EVI Heat Pump Air To - Water With Fan Copeland Compressor

    • 380V / 50HZ EVI  Heat Pump Air To  - Water With Fan Copeland Compressor
    • 380V / 50HZ EVI  Heat Pump Air To  - Water With Fan Copeland Compressor
  • 380V / 50HZ EVI  Heat Pump Air To  - Water With Fan Copeland Compressor

    Product Details:

    Place of Origin: Guangzhou China
    Brand Name: Meeting
    Certification: CE ISO CCC UKAS,ROHS
    Model Number: MD50D-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 PCS
    Price: Negotiation
    Packaging Details: Plywooden case
    Delivery Time: 15 days
    Payment Terms: T/T
    Supply Ability: 800/MONTH
    Contact Now
    Detailed Product Description
    Rated Input Power: 4.6KW Rated Heating Capacity: 13KW
    Rated Voitage: 380V/50HZ Rated Current: 9A
    High Light:

    evi air to water heat pump

    ,

    high efficiency heat pump

    Specially designed heat pump air-to-water with fan



    380V / 50HZ EVI  Heat Pump Air To  - Water With Fan Copeland Compressor 0



    Technology Specification

    Rated input power:4.6KW
    Rated heating capacity :13KW
    Hot water supply:280L/H
    Rated voitage:380V/50HZ
    Rated current :9A
    Maximum outlet water temperature :80℃
    Compressor:Copeland

    380V / 50HZ EVI  Heat Pump Air To  - Water With Fan Copeland Compressor 1





    Porduct important parameters

    Type:EVI heat pump

    Certification:CE ISO CCC UKAS,ROHS

    Place of Origin:Guangdong, China (Mainland)

    Brand Name:Meeting

    Model Number:MD50D-12

    Condenser:Double thread copper tube heat exchanger

    Evaporator:High efficiency inner thread tube connected with

    Throttling Device:Electric expansiona valve

    Refrigerant:R417A ,R407A,R22

    Net Weight (kg):152

    Compressor:Grain wheel

    Power supply:380V/50HZ

    Working air temp: -25℃—45℃

    Packaging Details

    Carton and Wooden Package,

    OEM is available





    380V / 50HZ EVI  Heat Pump Air To  - Water With Fan Copeland Compressor 2



    Features:

    1. With Advanced DC inverter technology, it saves 40% energy than normal heat pump in practical operation.



    2. Manage heating, cooling and hot water, fits your need all year round.



    3. With temperature compensation function, the water setting temperature adjusts automatically as the

    house's heat loss changes.

    4. Automatically variable fan speed to optimize heating efficiency.



    5. Can work with room thermostat or master controller.



    6. Can work with auxiliary heater.



    7. Split design with water system indoor, preventing water frozen problem.



    8. Easy wire connection ,simplifies installation and avoids mistakes.



    9. With controller interface, plate heat exchanger, circulation pump, flow switch, water pressure gauge in indoor unit.



    10. Allows absence of buffer tank.



    380V / 50HZ EVI  Heat Pump Air To  - Water With Fan Copeland Compressor 3





    Porduct Advantage:

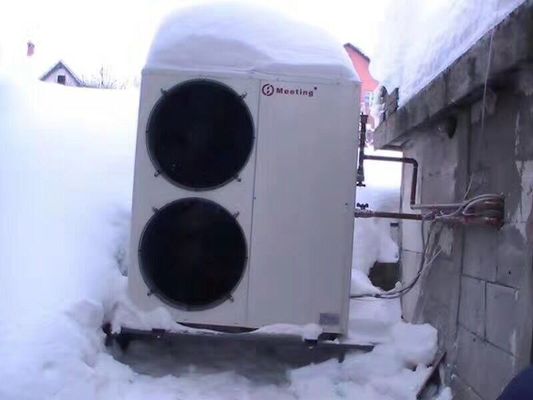

    Meeting EVI low ambient temperature air to water heat pump is designed for house heating as well as sanitary hot water in cold area, including North Europe and East Europe. This is one of the best air source heat pumps for cold area currently, with reliable operation at -25DegC ambient temperature



    380V / 50HZ EVI  Heat Pump Air To  - Water With Fan Copeland Compressor 4

    QC

    1. Complying with ISO standard. Quality Ensured.



    2. Complete Inspection for each unit before out of factory, covering water system and electricity detection and testing, ensuring 100% right product before shipment.



    3. Strict quality control during production. We have liquid soap detection, halogen detection, electrical detection and water-soaking detection during production to avoid gas leakage and electrical problems .



    4. Full inspection on bigger parts such as compressors, condensers, evaporators, expansion valves, flow switches, controllers etc.. Selection



    inspection for small parts such as sensors, pressure switches etc..



    5. Well noise control by using mute cotton for casing plates and soft rubber feet for floating compressors, some of the models use compressor



    isolation shields.



    6. Well insulated with insulated cotton for every pipe and parts, include compressor, dryer filter and each pipes.



    7. We have passed TUV and SGS inspections. We have CE, RoHs, IEC, CCC, CB certificates for most of our products. Some of our products



    have en14511 test, en14825 test.





    A. Payment service

    1. T/T

    2. L/C (for container order only)

    380V / 50HZ EVI  Heat Pump Air To  - Water With Fan Copeland Compressor 5



    B. Technical service

    1. We calculate the capacity and recommend the best models.



    2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.



    3. We supply the spare parts and technical support in and after the warranty time.



    4. We supply the training course to your workers at our factory if you need.



    5. We can offer site training to your workers in your place which is negotiable.



    C. After-sales service



    1. Technical support for your installation, operation and maintenance.



    2. Standard warranty time: One years’warranty for heat pumps



    You can also pay for extended warranty or we can renegotiate the longer warranty period.



    3. Spare parts and technical support at most economic prices after the warranty.





    Certificsate we have got :

    • ISO 9001, ISO 14000
    • Our company has been inspected and certificate by EMC
    • CE And EN14511, EN 14825-ERP for heat pump exported to europe
    • Energy label for all heat pump models sold to oversea market
    • Testing laboratory calibrated by CNAS

    380V / 50HZ EVI  Heat Pump Air To  - Water With Fan Copeland Compressor 6

    Packaging & Shipment

    1>Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.



    2>Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transporattion .



    3>All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.



    4>Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.



    5>Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)



    Packaging Details :Standard export packing -with plywoods case packages,OEM is available for Factory price heat pump water heaters



    Delivery Time :15 work days after arrival of down payment
